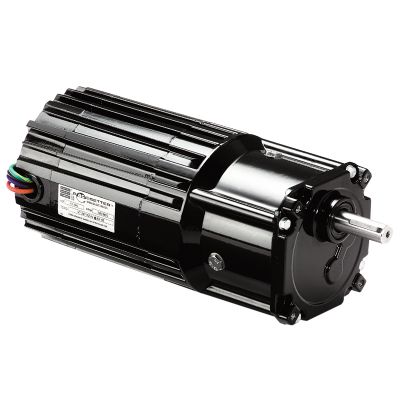

Bodine Electric 2224, 1/6 Hp, 28 Rpm, 90:1, 120 Lb-in., 34R6BEPP-Z3, 230 Vac., Series Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

Bodine Electric 2224, 1/6 Hp, 28 Rpm, 90:1, 120 Lb-in., 34R6BEPP-Z3, 230 Vac., Series Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

$588.61
$588.61
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2224, 1/6 Hp, 28 Rpm, 90:1, 120 Lb-in., 34R6BEPP-Z3, 230 Vac., Series Parallel Shaft AC 3-Phase Inverter Duty Gearmotor

Specifications

Speed (rpm) 28
Fixed Speed Torque 120 Lb-in
Motor Output Power (hp) 1/6
Voltage (AC) 230
Current (amps) 0.73
Rated Frequency (Hz) 60
Gear Ratio 60
Variable Speed (rpm) 2.8-39
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 120
SOA Torque At 60Hz 120
SOA Torque At Max Hz 120
Length XH (inches) 8.4
Weight (lbs) 10.5
Connection Diagram 07410007
Motor Type 34R6BEPP-Z3
HPDecimal 0.1667
