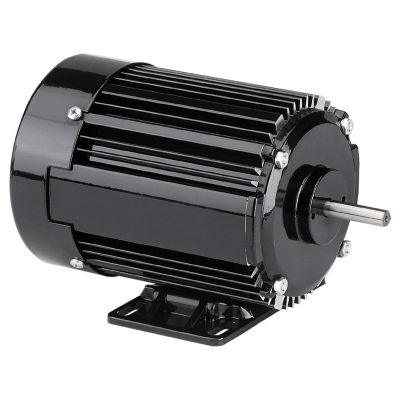

Bodine Electric 2234, 3/8 Hp, 1700 Rpm, 222 Oz-in., 42R6FPP. 230 Vac, 3 PH, C-Face, Variable Speed Inverter Duty Motor

Bodine Electric 2234, 3/8 Hp, 1700 Rpm, 222 Oz-in., 42R6FPP. 230 Vac, 3 PH, C-Face, Variable Speed Inverter Duty Motor

$438.80
$438.80
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2234, 3/8 Hp, 1700 Rpm, 222 Oz-in., 42R6FPP. 230 Vac, 3 PH, C-Face, Variable Speed Inverter Duty Motor

Specifications

Speed (rpm) 1700
Fixed Speed Torque 222 Oz-in
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 1.9
Rated Frequency (Hz) 60
Variable Speed (rpm) 177-3500
Frequency Range (Hz) 10-140
SOA Torque At 10Hz 170
SOA Torque At 60Hz 281
SOA Torque At Max Hz 137
Length XH (inches) 7.2
Weight (lbs) 13
Connection Diagram 07410007
Mounting NEMA C-Face
Motor Type 42R6BFPP
HPDecimal 0.375
