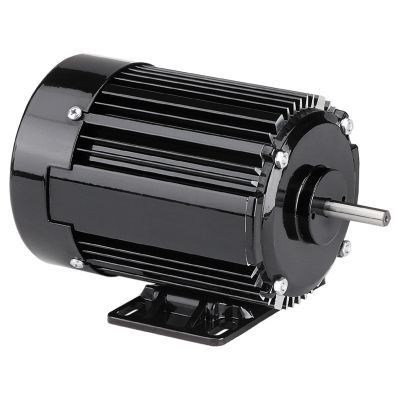

Bodine Electric 2235, 3/8 Hp, 1700 Rpm, 222 Oz-in., 42R6FPP. 230 Vac, 3 PH, Foot Mounted, Variable Speed Inverter Duty Motor

Bodine Electric 2235, 3/8 Hp, 1700 Rpm, 222 Oz-in., 42R6FPP. 230 Vac, 3 PH, Foot Mounted, Variable Speed Inverter Duty Motor

$444.86
$444.86
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2235, 3/8 Hp, 1700 Rpm, 222 Oz-in., 42R6FPP. 230 Vac, 3 PH, Foot Mounted, Variable Speed Inverter Duty Motor

Specifications

Speed (rpm) 1700
Fixed Speed Torque 222 Oz-in
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 1.9
Rated Frequency (Hz) 60
Variable Speed (rpm) 177-3500
Frequency Range (Hz) 10-140
SOA Torque At 10Hz 170
SOA Torque At 60Hz 281
SOA Torque At Max Hz 137
Length XH (inches) 7.2
Weight (lbs) 13
Connection Diagram 07410007
Mounting Base
Motor Type 42R6BFPP
HP Decimal 0.375
