Industrial Motors

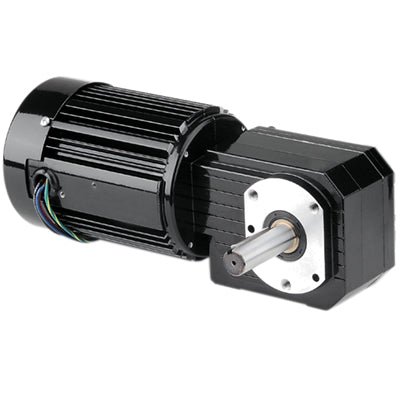

Bodine Electric 2238, 3/8 Hp, 28 Rpm, 120:1, 230 Lb-in., 42R6BFPP-GB, 230 Vac., Series 3-Phase AC Inverter Duty Right Angle Gearmotor

Bodine Electric 2238, 3/8 Hp, 28 Rpm, 120:1, 230 Lb-in., 42R6BFPP-GB, 230 Vac., Series 3-Phase AC Inverter Duty Right Angle Gearmotor

$1,022.88
$1,022.88
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2238, 3/8 Hp, 28 Rpm, 120:1, 230 Lb-in., 42R6BFPP-GB, 230 Vac., Series 3-Phase AC Inverter Duty Right Angle Gearmotor

Specifications

Speed (rpm) 28
Fixed Speed Torque (lb-in) 230
Motor Output Power (hp) 3/8
Voltage (AC) 230
Current (amps) 2.0
Rated Frequency (Hz) 60
Gear Ratio 60
Variable Speed (rpm) 3.0-38
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 230
SOA Torque At 60Hz 230
SOA Torque At Max Hz 230
Length XH (inches) 12.1
Weight (lbs) 19.5
Connection Diagram 07410881
Motor Type 42R6BFPP-GB
HPDecimal 0.375
