Industrial Motors

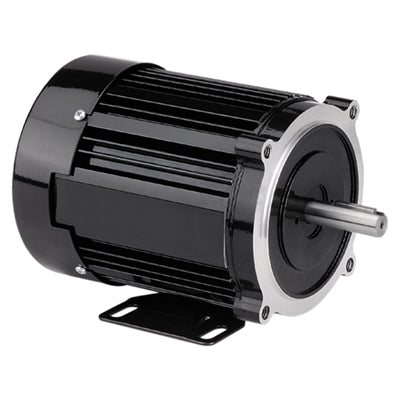

Bodine Electric 2240, 3/4 Hp, 1700 Rpm, 120:1, 445 Oz-in., 48R6BFPP, 230/460 Vac., Series AC 3-Phase Inverter Duty Motor)

Bodine Electric 2240, 3/4 Hp, 1700 Rpm, 120:1, 445 Oz-in., 48R6BFPP, 230/460 Vac., Series AC 3-Phase Inverter Duty Motor)

$635.53
$635.53
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2240, 3/4 Hp, 1700 Rpm, 120:1, 445 Oz-in., 48R6BFPP, 230/460 Vac., Series AC 3-Phase Inverter Duty Motor

Specifications

Speed (rpm) 1700
Fixed Speed Torque 445 Oz-in
Motor Output Power (hp) 3/4
Voltage (AC) 230/460
Current (amps) 2.7/1.3
Rated Frequency (Hz) 60
Variable Speed (rpm) 160-3600
Frequency Range (Hz) 10-140
SOA Torque At 10Hz 412
SOA Torque At 60Hz 675
SOA Torque At Max Hz 220
Length XH (inches) 7.8
Weight (lbs) 20.5
Connection Diagram 07410012
Motor Type 48R6BFPP
HPDecimal 0.75
