Industrial Motors

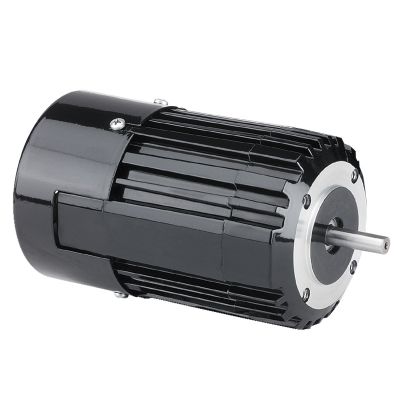

Bodine Electric 2299, 1/8 Hp, 1800 Rpm, 70 Oz-in., 34R6BFY. 230 Vac, 3 PH, Variable Speed Inverter Duty Motor

Bodine Electric 2299, 1/8 Hp, 1800 Rpm, 70 Oz-in., 34R6BFY. 230 Vac, 3 PH, Variable Speed Inverter Duty Motor

$369.21
$369.21
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2299, 1/8 Hp, 1800 Rpm, 70 Oz-in., 34R6BFY. 230 Vac, 3 PH, Variable Speed Inverter Duty Motor

Specifications

Speed (rpm) 1800
Fixed Speed Torque 70 oz-in
Motor Output Power (hp) 1/8
Voltage (AC) 230
Current (amps) 1.4
Rated Frequency (Hz) 60
Variable Speed (rpm) 300-2400
Frequency Range (Hz) 10-80
SOA Torque At 10Hz 54
SOA Torque At 60Hz 103
SOA Torque At Max Hz 48
Length XH (inches) 6.7
Weight (lbs) 9
Connection Diagram 07410881
Motor Type 34R6BFYP
HPDecimal 0.125
