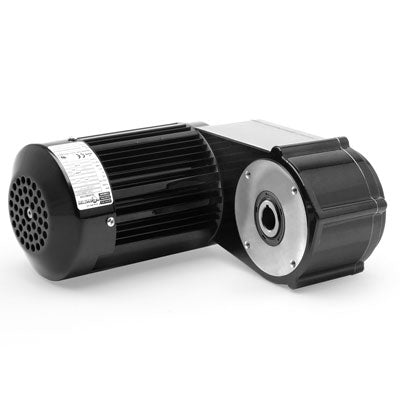

Bodine Electric, 2645, 42R6BFPP-HG/H, 3/8 HP, 16 RPM, 1020 Lb-in, 230:1, 230/460 Vac, Series Parallel Shaft AC 3-Phase Inverter Duty Hollow Shaft Gearmotor

Bodine Electric, 2645, 42R6BFPP-HG/H, 3/8 HP, 16 RPM, 1020 Lb-in, 230:1, 230/460 Vac, Series Parallel Shaft AC 3-Phase Inverter Duty Hollow Shaft Gearmotor

$995.94
$995.94
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2645, 42R6BFPP-HG/H, 3/8 HP, 16 RPM, 1020 Lb-in, 230:1, 230/460 Vac, Series Parallel Shaft AC 3-Phase Inverter Duty Hollow Shaft Gearmotor

SPECIFICATIONS

Speed (rpm) 16
Fixed Speed Torque (lb-in) 1020
Motor Output Power (hp) 3/8
Voltage (AC) 230/460
Current (amps) 1.9/0.95
Rated Frequency (Hz) 60
Gear Ratio 108
Variable Speed (rpm) 1.6 to 21.2
Frequency Range (Hz) 10 to 90
SOA Torque At 10Hz 896
SOA Torque At 60Hz 1020
SOA Torque At Max Hz 1020
Radial Load (lbs) 336
Length XH (inches) 9.855
Weight (lbs) 17
Connection Diagram 07410012
Motor Type 42R6BFPP-HG/H
HPDecimal 0.375
