Industrial Motors

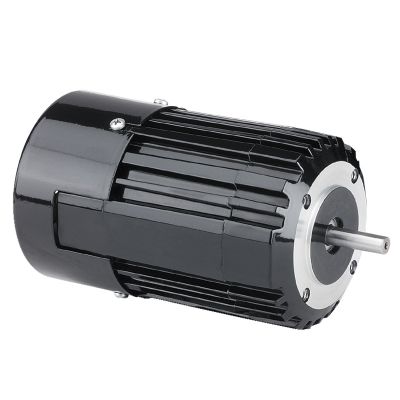

Bodine Electric 2899, 1/4 Hp, 1700 Rpm, 148 Oz-in., 34R6BPP. 230/460 Vac, 3 PH, Variable Speed Inverter Duty Motor

Bodine Electric 2899, 1/4 Hp, 1700 Rpm, 148 Oz-in., 34R6BPP. 230/460 Vac, 3 PH, Variable Speed Inverter Duty Motor

$347.42
$347.42
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

2899, 1/4 Hp, 1700 Rpm, 148 Oz-in., 34R6BPP. 230/460 Vac, 3 PH, Variable Speed Inverter Duty Motor

Specifications

Speed (rpm) 1700
Fixed Speed Torque 148 Oz-in
Motor Output Power (hp) 1/4
Voltage (AC) 230/460
Current (amps) 1.2/0.6
Rated Frequency (Hz) 60
Variable Speed (rpm) 220-3650
Frequency Range (Hz) 10-140
SOA Torque At 10Hz 120
SOA Torque At 60Hz 247
SOA Torque At Max Hz 90
Length XH (inches) 6.7
Weight (lbs) 9
Connection Diagram 07410883
Motor Type 34R6BFPP
HPDecimal 0.25
