Industrial Motors

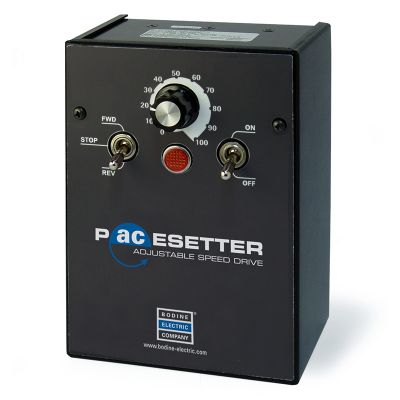

Bodine Electric 2998 AC Drives, Nema 1 Inverter 1 HP, 115/230 Vac 1-Phase Input, 230 Vac 3-Phase Output, Nema 1(IP50) Enclosure, Variable Frequency Drives

Bodine Electric 2998 AC Drives, Nema 1 Inverter 1 HP, 115/230 Vac 1-Phase Input, 230 Vac 3-Phase Output, Nema 1(IP50) Enclosure, Variable Frequency Drives

$527.35
$527.35
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 2998, AC Drives, Nema 1 Inverter 1 HP, 115/230 Vac 1-Phase Input, 230 Vac 3-Phase Output, Nema 1(IP50) Enclosure, Variable Frequency Drives

SPECIFICATIONS

Motor HP Up To 1
Phases Input: Single-phase 115 Or 208/230 VAC, 50/60Hz. Output: 3-phase, 230 VAC (50Hz Or 60Hz, Selectable)
Output Volts 0 To 230
Output Amps 3.6 Max
Output Hz 0 To 120
Input Volts 115 Or 208/230
Input Hz 50/60
Dimensions (inches; W X H X D) 5 X 7 X 4.2
Weight (lbs) 2.5
HPDecimal 1.0
