Industrial Motors

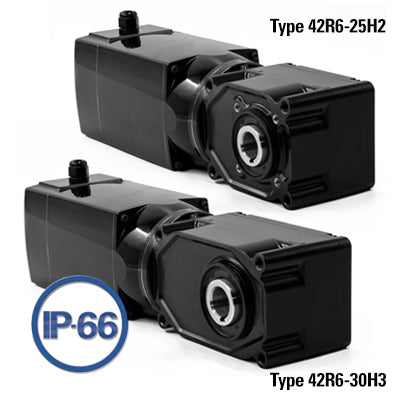

Bodine Electric 3061, 1/3 Hp, 340 Rpm, 240:1, 53 Lb-in, 42R6BEPP-25H2, 230/460Vac, Hypoid Series 42R6 3-Phase AC Inverter-Duty Right Angle Hollow Shaft Gearmotors

Bodine Electric 3061, 1/3 Hp, 340 Rpm, 240:1, 53 Lb-in, 42R6BEPP-25H2, 230/460Vac, Hypoid Series 42R6 3-Phase AC Inverter-Duty Right Angle Hollow Shaft Gearmotors

$1,301.45
$1,301.45
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 3061, 1/3 Hp, 340 Rpm, 240:1, 53 Lb-in, 42R6BEPP-25H2, 230/460Vac, Hypoid Series 42R6 3-Phase AC Inverter-Duty Right Angle Hollow Shaft Gearmotors

SPECIFICATIONS

Speed (rpm) 340
Fixed Speed Torque (lb-in) 53
Motor Output Power (hp) 1/3
Voltage (AC) 230/460
Current (amps) 1.50/0.76
Rated Frequency (Hz) 60
Gear Ratio 5
Radial Load (lbs) 277
Variable Speed (rpm) 48-484
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 34
SOA Torque At 60Hz 53
SOA Torque At Max Hz 47
Length XH (inches) 15.47
Weight (lbs) 29
Connection Diagram 07410883C
Motor Type 42R6BEPP-25H2
HPDecimal 0.333
