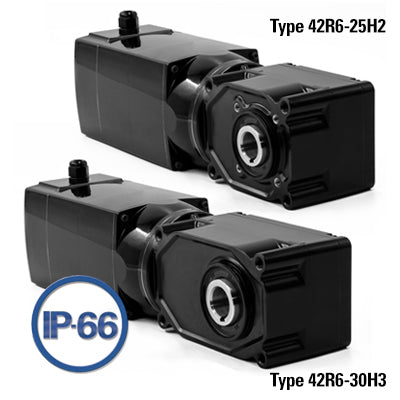

Bodine Electric 3072, 1/3 Hp, 7 Rpm, 240:1, 2328 Lb-in, 42R6BEPP-30H3, 230/460Vac,Hypoid Series 42R6 3-Phase AC Inverter-Duty Right Angle Hollow Shaft Gearmotors

Bodine Electric 3072, 1/3 Hp, 7 Rpm, 240:1, 2328 Lb-in, 42R6BEPP-30H3, 230/460Vac,Hypoid Series 42R6 3-Phase AC Inverter-Duty Right Angle Hollow Shaft Gearmotors

$1,421.99
$1,421.99
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 3072, 1/3 Hp, 7 Rpm, 240:1, 2328 Lb-in, 42R6BEPP-30H3, 230/460Vac,Hypoid Series 42R6 3-Phase AC Inverter-Duty Right Angle Hollow Shaft Gearmotors

SPECIFICATIONS

Speed (rpm) 7
Fixed Speed Torque (lb-in) 2328
Motor Output Power (hp) 1/3
Voltage (AC) 230/460
Current (amps) 1.50/0.76
Rated Frequency (Hz) 60
Gear Ratio 240
Radial Load (lbs) 708
Variable Speed (rpm) 1-10
Frequency Range (Hz) 10-90
SOA Torque At 10Hz 1469
SOA Torque At 60Hz 2328
SOA Torque At Max Hz 2042
Length XH (inches) 17.03
Weight (lbs) 32
Connection Diagram 07410012J
Motor Type 42R6BEPP-30H3
HPDecimal 0.333
