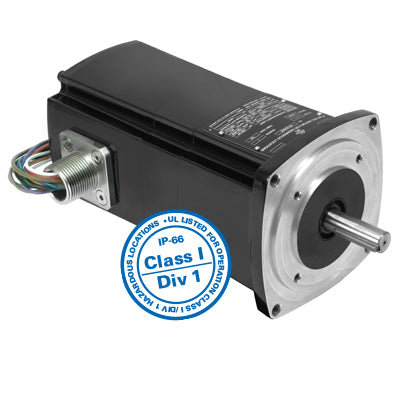

Bodine Electric 3264, 1/4 Hp, 1600 Rpm, 158 Oz-in, 34R6BXPP. 460 Vac, 3 PH, Class 1, Division 1, Variable Speed Inverter Duty Motor

Bodine Electric 3264, 1/4 Hp, 1600 Rpm, 158 Oz-in, 34R6BXPP. 460 Vac, 3 PH, Class 1, Division 1, Variable Speed Inverter Duty Motor

$647.05
$647.05
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Bodine Electric 3264, 1/4 Hp, 1600 Rpm, 158 Oz-in, 34R6BXPP. 460 Vac, 3 PH, Class 1, Division 1, Variable Speed Inverter Duty Motor

SPECIFICATIONS

Speed (rpm) 1600
Fixed Speed Torque (oz-in) 158
Motor Output Power (hp) 1/4
Voltage (AC) 460
Current (amps) 0.49
Rated Frequency (Hz) 10 to 120
Variable Speed (rpm) 214 to 3259
Frequency Range (Hz) 10 to 120
SOA Torque At 10Hz 114
SOA Torque At 60Hz 158
SOA Torque At Max Hz 55
Radial Load (lbs) 37
Length XH (inches) 9.534
Weight (lbs) 19
Connection Diagram 07401151
Motor Type 34R6BXPP
HPDecimal 0.25
