Industrial Motors

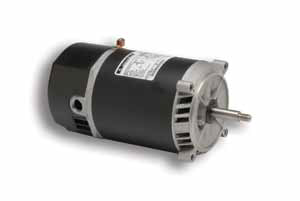

Marathon Electric C1089, 3/4 HP, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KC33MN2502X

Marathon Electric C1089, 3/4 HP, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KC33MN2502X

$679.00
$679.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$679.00 $645.05
Sale

C1089, 3/4 HP, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KC33MN2502X.

Engineering Data

60 Hertz
HP 3/4 Voltage 115/230
kW N/A FL Amps 11.6/5.8
RPM 3450
FL Eff 0 % SF 1.50

Phase 1 Insulation Class B
Frame 56J Duty Continuous
Enclosure DP Ambient 50
Mounting N/R NEMA Design N/A
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code M
Drive End Bearing LOCKED IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 17MM Rotation Clockwise
Opposite End Bearing Size 17MM Hazardous Location 2C
Weight 17.6 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection Automate

View full details

Attachments
