Industrial Motors

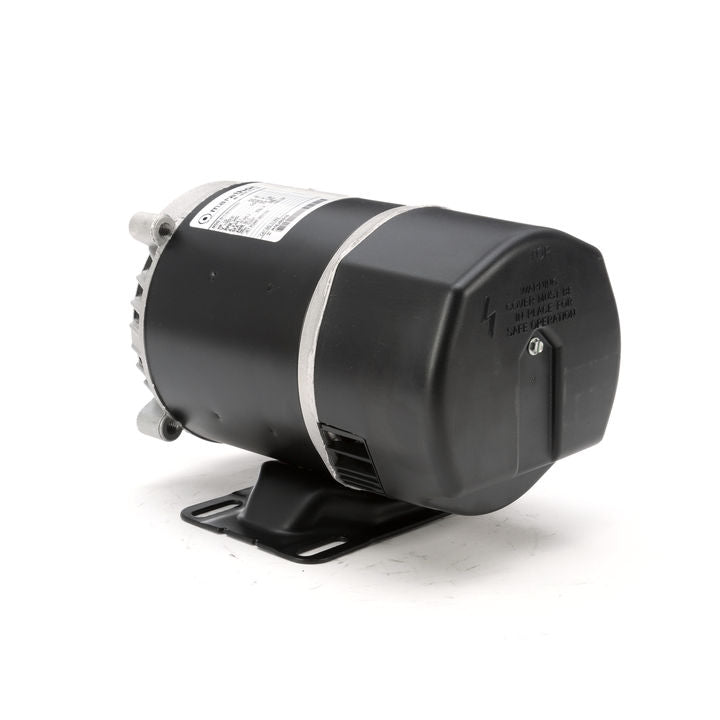

Marathon Electric C1462, 1/2 Hp, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KC39HN2888X

Marathon Electric C1462, 1/2 Hp, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KC39HN2888X

$592.00
$592.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$592.00 $562.40
Sale

C1462, 1/2 Hp, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, Jet Pump, Two-Compartment, 5KC39HN2888X

Engineering Data

60 Hertz
HP 1/2 Voltage 115/230
kW N/A FL Amps 8.2/4.1
RPM 3450
FL Eff 0 % SF 1.60

Phase 1 Insulation Class B
Frame 56J Duty Continuous
Enclosure DP Ambient 50
Mounting WB NEMA Design
Orientation Horizontal or Vertical Starting Type Switch and Mech
Assembly N/A KVA Code V
Drive End Bearing LOCKED IP Code N/A
Opposite End Bearing BALL
Drive End Bearing Size 17MM Rotation Clockwise
Opposite End Bearing Size 17MM Hazardous Location 2C
Weight 16 LB lbs
CE N/A CSA Y
UL Y
Thermal Protection Automatic
