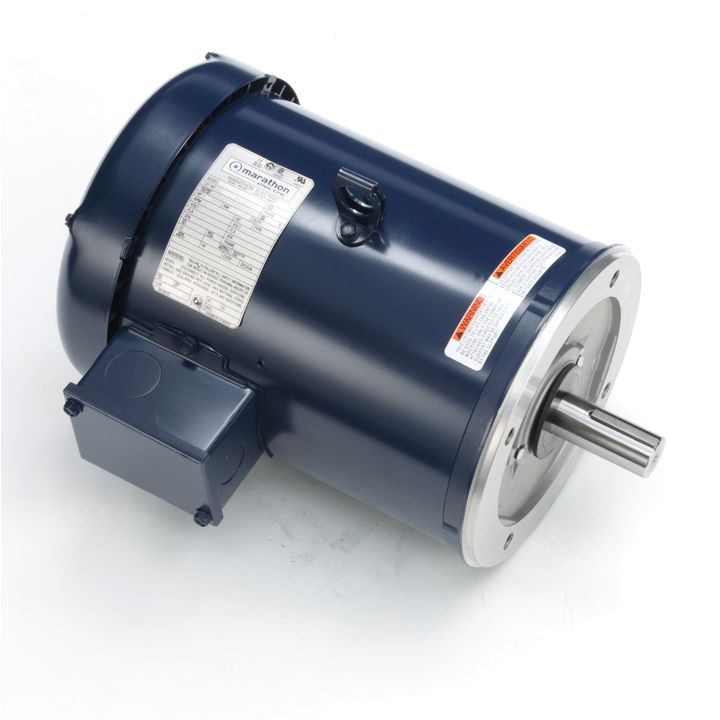

Marathon Electric C224B, 184TTFW16046, 5 Hp, 1800 Rpm, 184TC FR, 208-230/460 Vac, 3 PH. TEFC, C-Face Footless, General Purpose, Standard Efficiency

C224B, 184TTFW16046, 5 Hp, 1800 Rpm, 184TC FR, 208-230/460 Vac, 3 PH. TEFC, C-Face Footless, General Purpose, Standard Efficiency

Engineering Data

Nameplate Specifications

Output HP  5 Hp
Output KW  3.7 kW
Frequency  60 Hz
Voltage  208-230/460 V
Current  13.8-12.6/6.3 A
Speed  1760 rpm
Service Factor  1.15
Phases  3
Efficiency  89.5 %
Duty  CONTINUOUS
Insulation Class  F
Design Code  B
KVA Code  G
Frame  184TC
Enclosure  TEFC
Overload Protector  NOT
Ambient Temperature  40 °C
Drive End Bearing Size  6206
Opp Drive End Bearing Size 6205
UL  Recognized
CSA  Y
CE  Y
IP Code  43
Technical Specifications

Electrical Type  SQ CAGE IND RUN
Starting Method  ACROSS THE LINE
Poles  4
Rotation  REV
Mounting  ROUND
Motor Orientation  HORIZONTAL
Drive End Bearing  BALL
Opp Drive End Bearing  BALL
Frame Material  ROLLED STEEL
Shaft Type  T
Overall Length 14.97 in
Frame Length  9.5 in
Shaft Diameter  1.13 in
Shaft Extension  2.88 in
Assembly/Box Mounting  F1 ONLY
Thermal Protection
