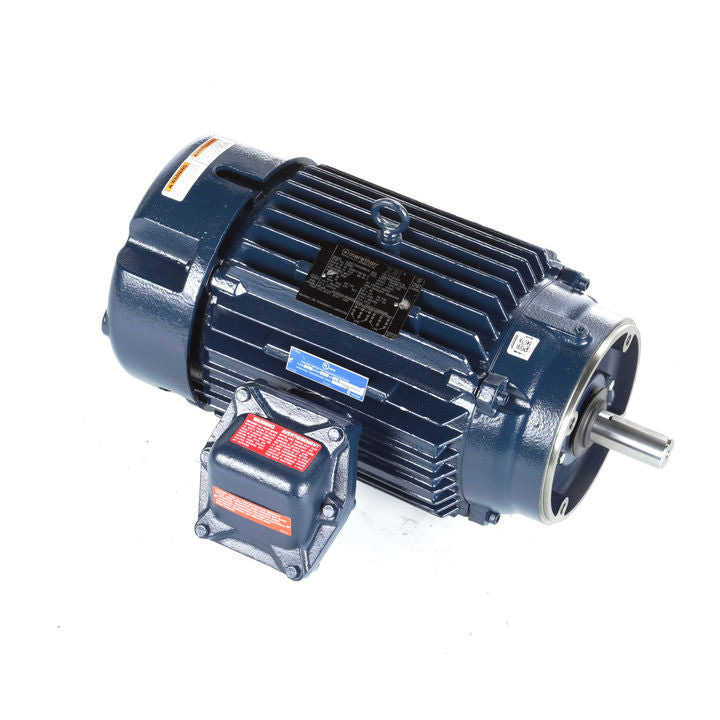

Marathon Electric C306B, 10 Hp, 1800 RPM, 215TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, Hazardous Duty Explosion Proof Motor, 215TTGND16006

C306B, 10 Hp, 1800 RPM, 215TC FR, 230/460 Vac, 3 PH, TEFC, C-Face Footless, Hazardous Duty Explosion Proof Motor, 215TTGND16006

General Specifications

Model : 215TTGND16006
Catalog No : C306A
Part Description : 10,3600,EPFC,215TC,3/60/230/460
Category : Division 1
Stock : Yes

Nameplate Specifications

Output HP : 10 Hp
Output KW : 7.5 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 23.8/11.9 A
Speed : 3520 rpm
Service Factor : 1
Phases : 3
Efficiency : 90.2 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 215TC
Enclosure : EPFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6208
UL : No
CSA : N
CE : N
IP Code : 54

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : LINE OR INVERTER
Poles : 2
Rotation : REV
Mounting : ROUND
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : T
Overall Length : 23.45 in
Frame Length : 12.12 in
Shaft Diameter : 1.38 in
Shaft Extension : 3.12 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856050687
