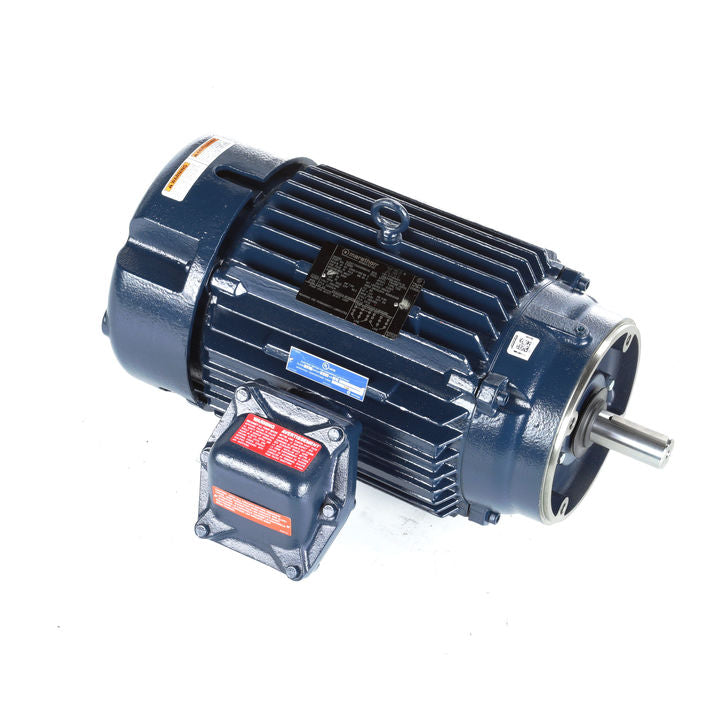

Marathon Electric C307B, 15 Hp, 3600 RPM, 254TC FR, 230/460 V, 3 PH, TEFC, C-Face Footless, Hazardous Duty Explosion Proof Motor, 254TTGN16524

C307B, 15 Hp, 3600 RPM, 254TC FR, 230/460 V, 3 PH, TEFC, C-Face Footless, Hazardous Duty Explosion Proof Motor, 254TTGN16524

General Specifications

Model : 254TTGN16524
Catalog No : C307A Part Description : 15,3600,EPFC,254TC,3/60/208-230/460
Category : Division 1
Stock : Yes

Nameplate Specifications

Output HP : 15 Hp
Output KW : 11.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 35/17.5 A
Speed : 3520 rpm
Service Factor : 1
Phases : 3
Efficiency : 90.2 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 254TC
Enclosure : EPFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6207
UL : No
CSA : N
CE : N
IP Code : 54

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : LINE OR INVERTER
Poles : 2
Rotation : REV
Mounting : ROUND
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : T
Overall Length : 24.19 in
Frame Length : 11.75 in
Shaft Diameter : 1.63 in
Shaft Extension : 4 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856022677
