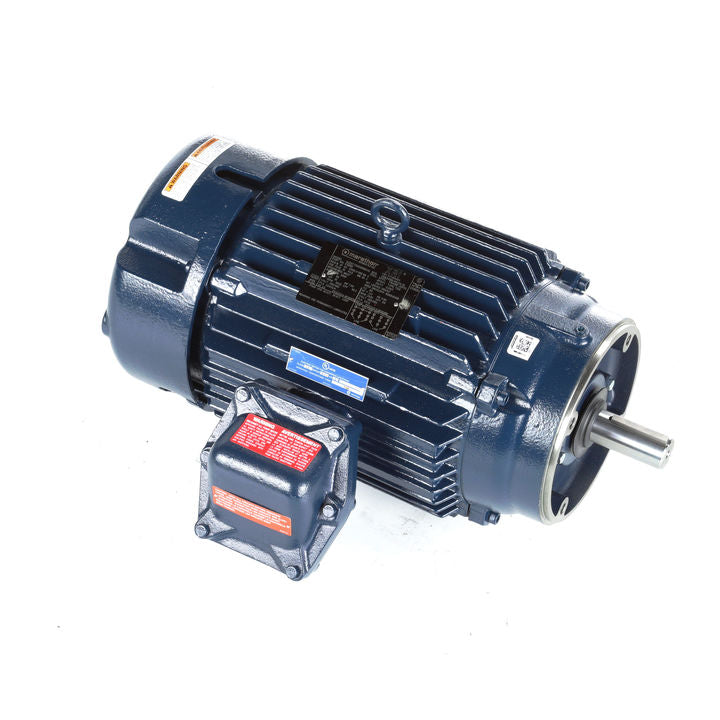

Marathon Electric C327B, 15 Hp, 1800 RPM, 254TC FR, 230/460 V, 3 PH, TEFC, C-Face Footless, Hazardous Duty Explosion Proof Motor, 254TTGN16034

C327B, 15 Hp, 1800 RPM, 254TC FR, 230/460 V, 3 PH, TEFC, C-Face Footless, Hazardous Duty Explosion Proof Motor, 254TTGN16034

General Specifications

Model : 254TTGN14042
Catalog No : C327A
Part Description : 15,1800,EPFC,254TC,3/60/208-230/460
Category : Division 1
Stock : Yes

Nameplate Specifications

Output HP : 15 Hp
Output KW : 11.2 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 39/19.5 A
Speed : 1770 rpm
Service Factor : 1
Phases : 3
Efficiency : 91 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : G
Frame : 254TC
Enclosure : EPFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6210
UL : No
CSA : N
CE : N
IP Code : 54

Technical Specifications

Electrical Type : SQ CAGE IND RUN
Starting Method : ACROSS THE LINE
Poles : 4
Rotation : REV
Mounting : ROUND Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : T
Overall Length : 25.77 in
Frame Length : 12.25 in
Shaft Diameter : 1.63 in
Shaft Extension : 3.75 in
Assembly/Box Mounting : F1
ONLY UPC : 722856022769
