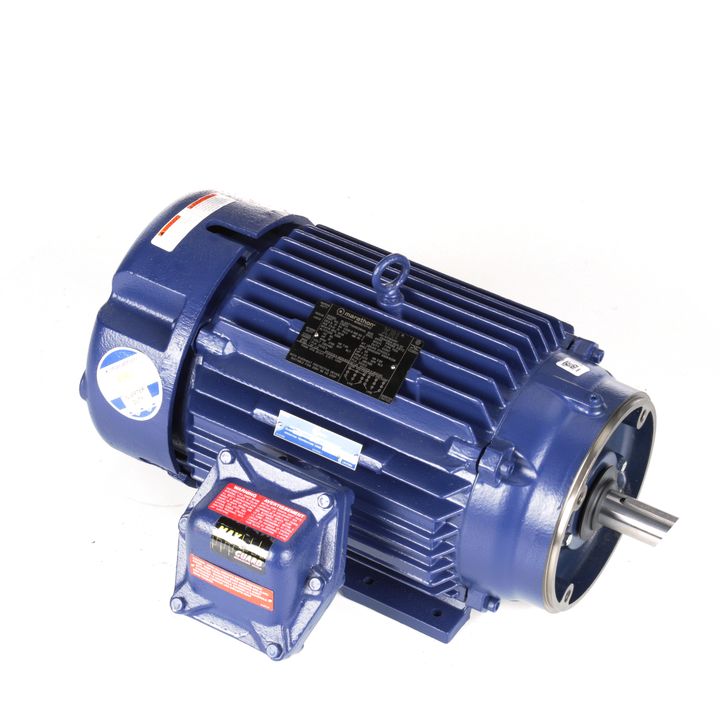

Marathon Electric C366B, 7 1/2 HP, 1800 RPM, 213TC FR, 230/460 V, 3 PH, C-Face Footed, Hazardous Duty Motor, 213TTGND6528.

C366B, 7 1/2 HP, 1800 RPM, 213TC FR, 230/460 V, 3 PH, C-Face Footed, Hazardous Duty Motor, 213TTGND6528.

Engineering Data

Output HP : 7.5 Hp
Output KW : 5.6 kW
Frequency : 60 Hz
Voltage : 230/460 V
Current : 20/10 A
Speed : 1770 rpm
Service Factor : 1.15
Phases : 3
Efficiency : 91.7 %
Duty : CONTINUOUS
Insulation Class : F
Design Code : B
KVA Code : H
Frame : 213TC
Enclosure : EPFC
Overload Protector : NOT
Ambient Temperature : 40 °C
Drive End Bearing Size : 6309
Opp Drive End Bearing Size : 6208
UL : No
CSA : N
CE : N
IP Code : 54

Technical Specifications

Electrical Type : SQ CAGE INV RATED
Starting Method : LINE OR INVERTER
Poles : 4
Rotation : REV
Mounting : RIGID
Motor Orientation : HORIZONTAL
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : CAST IRON
Shaft Type : T
Overall Length : 20.45 in
Frame Length : 9.12 in
Shaft Diameter : 1.38 in
Shaft Extension : 3.12 in
Assembly/Box Mounting : F1 ONLY
UPC : 722856022202
