Industrial Motors

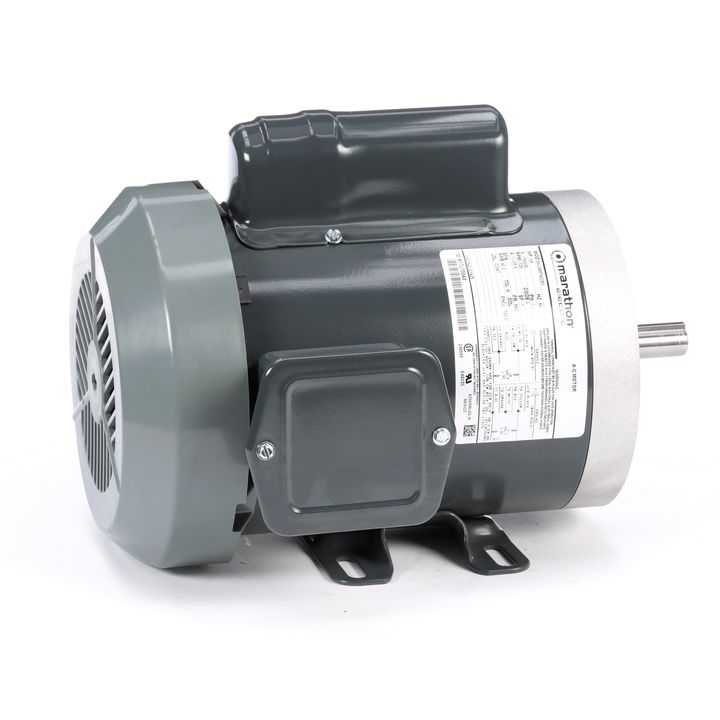

Marathon Electric C376, 5KC49TN0067, 1 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, 1 PH, TEFC, C-Face, Rigid Base, General Purpose, No over load.

Marathon Electric C376, 5KC49TN0067, 1 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, 1 PH, TEFC, C-Face, Rigid Base, General Purpose, No over load.

$1,029.00
$1,029.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,029.00 $977.55
Sale

C376, 5KC49TN0067, 1 Hp, 1800 Rpm, 56C FR, 115/208-230 Vac, 1 PH, TEFC, C-Face, Rigid Base, General Purpose, No over load.

Engineering Data

Output HP 1 Hp
Output KW  0.75 kW
Frequency  60 Hz
Voltage  115/208-230 V
Current  13.2,6.7-6.6 A
Speed  1725 rpm
Service Factor  1
Phases  1
Efficiency  69.1 %
Duty  CONT
Insulation Class  B
KVA Code  K
Frame  56C
Enclosure  TEFC
Overload Protector  N/R
Ambient Temperature  40 °C
Drive End Bearing Size  6203
Opp Drive End Bearing Size  6203
UL  Recognized
CSA  Yes
CE  N

Technical Specifications
Electrical Type Capacitor start(CSIR)
Starting Method  SM
Poles  4
Rotation  CCW/CW
Mounting  WB
Motor Orientation  ANY
Drive End Bearing  BALL
Opp Drive End Bearing  LOCKED
Frame Material  Rolled Steel
Overall Length  12.96 in
Frame Length  7.68 in
Shaft Diameter  0.63 in
Shaft Extension  1.88 in
