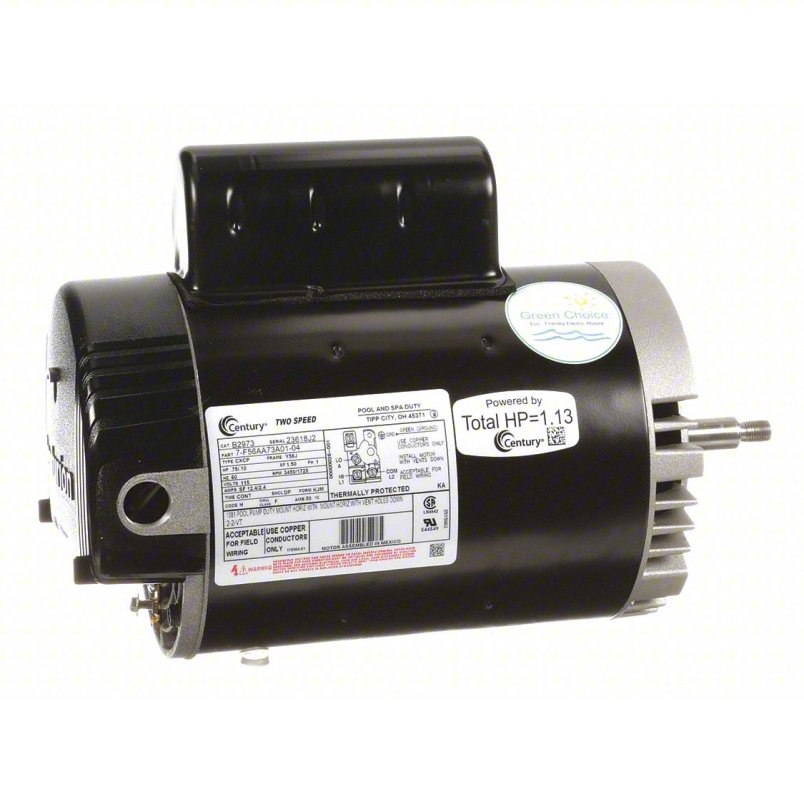

Century B2973, 3/4 Hp, 3600 Rpm, 56-1/2" Diameter (56J Frame), NEMA C, 115 Vac, 1 PH, ODP, Threaded Shaft, Permanent Split Capacitor, Switchless, C-Face Less Base, Spa, Two Speed, Full Rated Motor

Century B2973, 3/4 Hp, 3600 Rpm, 56-1/2" Diameter (56J Frame), NEMA C, 115 Vac, 1 PH, ODP, Threaded Shaft, Permanent Split Capacitor, Switchless, C-Face Less Base, Spa, Two Speed, Full Rated Motor

$248.25
$248.25
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Century B2973, 3/4 Hp, 3600 Rpm, 56-1/2" Diameter (56J Frame), NEMA C, 115 Vac, 1 PH, ODP, Threaded Shaft, Permanent Split Capacitor, Switchless, C-Face Less Base, Spa, Two Speed, Full Rated Motor

Engineering Data

Stock Number
B2973

Horse Power
.75/.10

Amps
SF 12.4/2.4

Frequency
60

RPM
3450/1725

Voltage
115

Number of Speeds
2-2VT

Motor Type
CXCP

Frame Size
Y56J

Nema Suffix
J

Mounting Type
ROUND FRAME

Service Factory
1.50

Phase
1

Enclosure
ODP

Bearings
BALL BRG

Ambient Temperature
50

Insulation Class
F

Rotation
CW

Protector
THERMALLY PROTECTED

Duty Cycle
CONT

Agency Approvals
ULCSA
