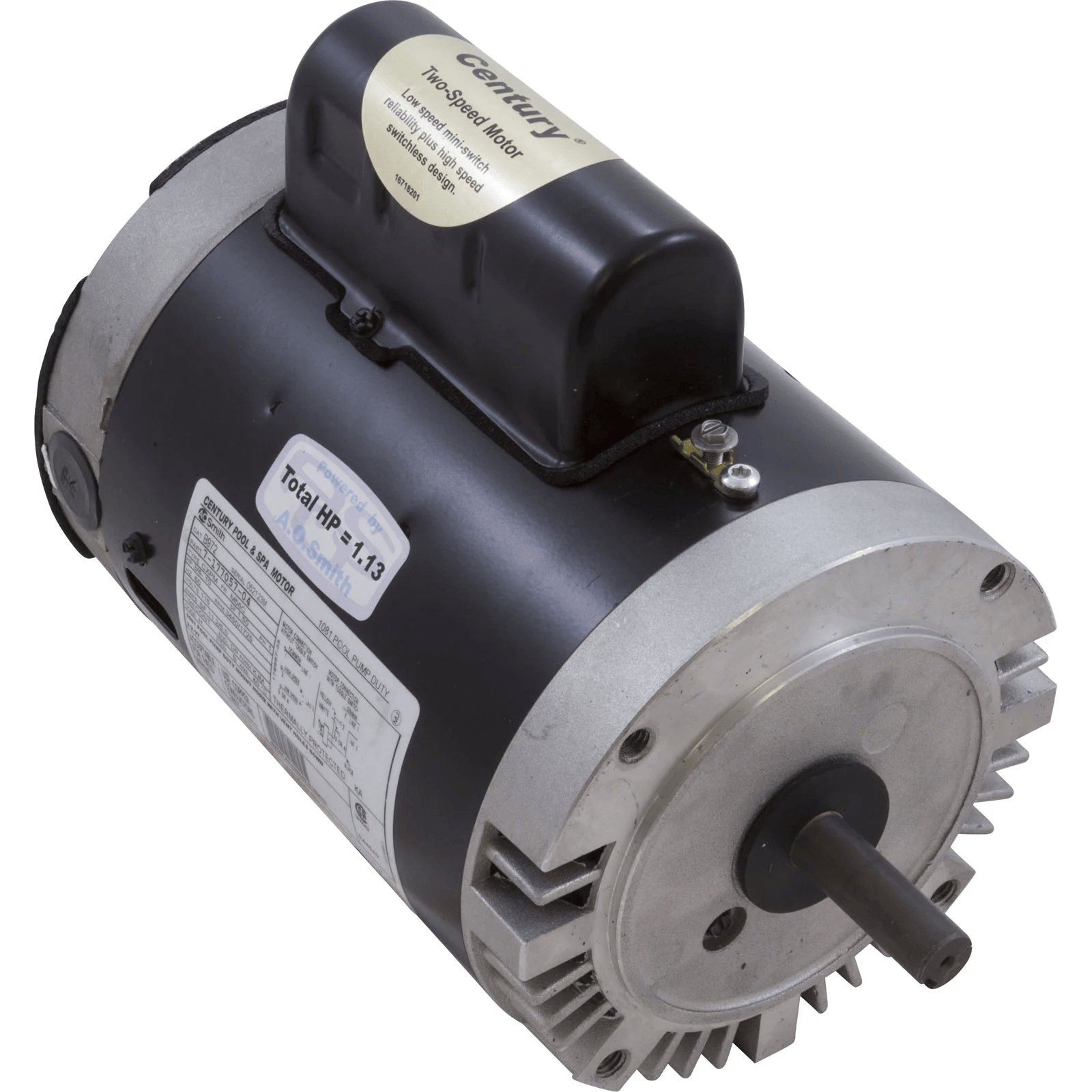

Century B972, 3/4 Hp, 3600 Rpm, 56-1/2" Diameter (56 Frame), NEMA C, 115 Vac, 1 PH, ODP, Keyed Shaft, Permanent Split Capacitor, Switchless, C-Face Less Base, Spa, Two Speed, Full Rated Motor

Century B972, 3/4 Hp, 3600 Rpm, 56-1/2" Diameter (56 Frame), NEMA C, 115 Vac, 1 PH, ODP, Keyed, Permanent Split Capacitor, Switchless, C-Face Less Base, Spa, Two Speed, Full Rated Motor

Engineering Data

Stock Number
B972

Horse Power
3/4-.10

Amps
SF 11.2/5.0

Frequency
60

RPM
3450/1725

Voltage
115

Number of Speeds
2-2-VT

Motor Type
CXPM

Frame Size
M56C

Nema Suffix
C

Mounting Type
ROUND FRAME

Service Factory
1.50

Phase
1

Enclosure
ODP

Bearings
BALL

Ambient Temperature
40

Insulation Class
B

Rotation
CCWPE

Protector
THERMALLY PROTECTED

Duty Cycle
CONT
