Industrial Motors

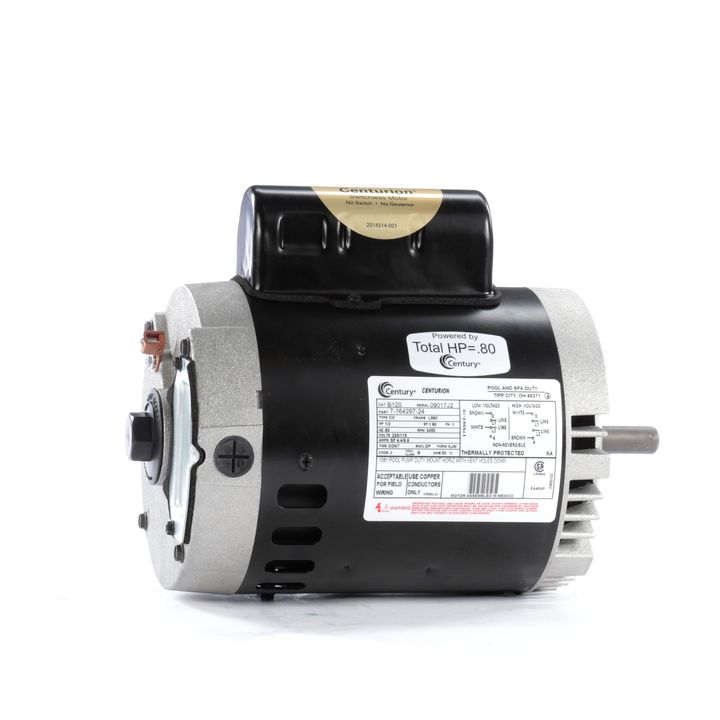

Century Electric B120, 1/2 HP, 3600 Rpm, 3600 Rpm, 56C FR, 1 PH, 115/230 Vac, ODP, C-Face Less Base, Pool Pump Motor

Century Electric B120, 1/2 HP, 3600 Rpm, 3600 Rpm, 56C FR, 1 PH, 115/230 Vac, ODP, C-Face Less Base, Pool Pump Motor

$205.05
$205.05
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

B120, 1/2 HP, 3600 Rpm, 3600 Rpm, 56C FR, 1 PH, 115/230 Vac, ODP, C-Face Less Base, Pool Pump Motor.

Engineering Data

Horse Power 1/2
Amps SF 4.4/8.8 Frequency 60
RPM 3450 Voltage 230/115
Number of Speeds 1 Motor Type CX
Frame Size L56C Nema Suffix C
Mounting Type C-FACE Service Factory 1.60
Phase 1 Enclosure ODP
Bearings BALL/BALL Ambient Temperature 50
Insulation Class B Rotation CCWPE
Protector THERMALLY PROTECTED Duty Cycle CONT
Agency Approvals ULCSA

View full details

Attachments
