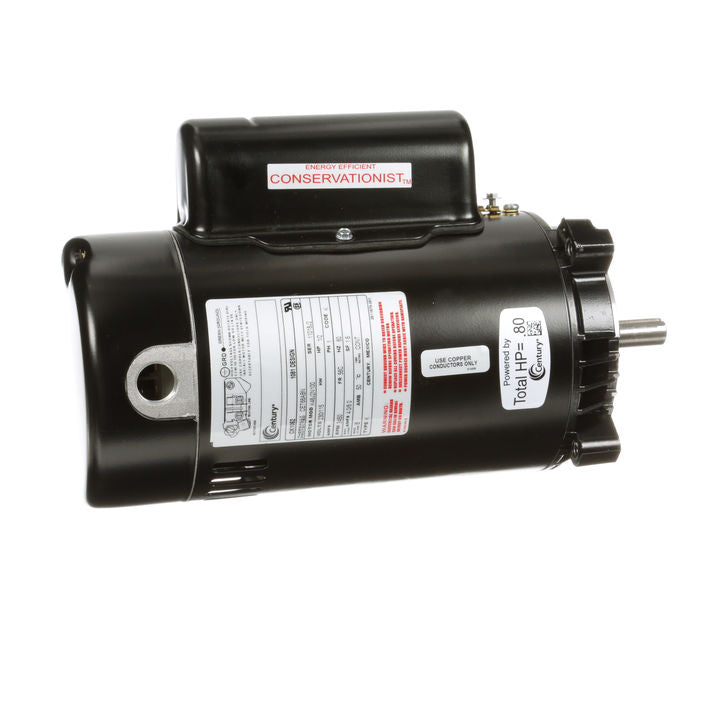

Century Electric CK1052, 1/2 Hp, 3600 Rpm, 56C FR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, Pool (In Ground), Two Compartment, Full Rated

CK1052, 1/2 Hp, 3600 Rpm, 56C FR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, Pool (In Ground), Two Compartment, Full Rated.

General Specifications

Model :
CK1052 Catalog No :
CK1052
Part Description :
1/2 HP 3450 115/230 ODP 56C KEYED SHAFT Category :
Induction Motors
Stock :
Yes

Nameplate Specifications

Output HP :
1/2 HP Output KW :
0.37 kW
Frequency :
60 Hz Voltage :
230/115 V
Current :
4.0/8.0 A Speed :
3450 RPM
Service Factor :
1.6 Phase :
1
Duty :
Continuous Insulation Class :
B
Frame :
56C Enclosure :
Open Drip Proof
Overload Protector :
Automatic Ambient Temperature :
50 °C
UL :
Recognized CSA :
Y

Technical Specifications

Electrical Type :
Capacitor Start Capacitor Run Poles :
2
Rotation :
Counterclockwise Pump End Mounting :
Round
Motor Orientation :
Horizontal Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL Frame Material :
Rolled Steel
Shaft Type :
Keyed Overall Length :
13.06 in
Frame Length :
7.63 in Shaft Diameter :
0.625 in
Shaft Extension :
2.06 in UPC :
786674017147
Weight :
22.00 LB
