Industrial Motors

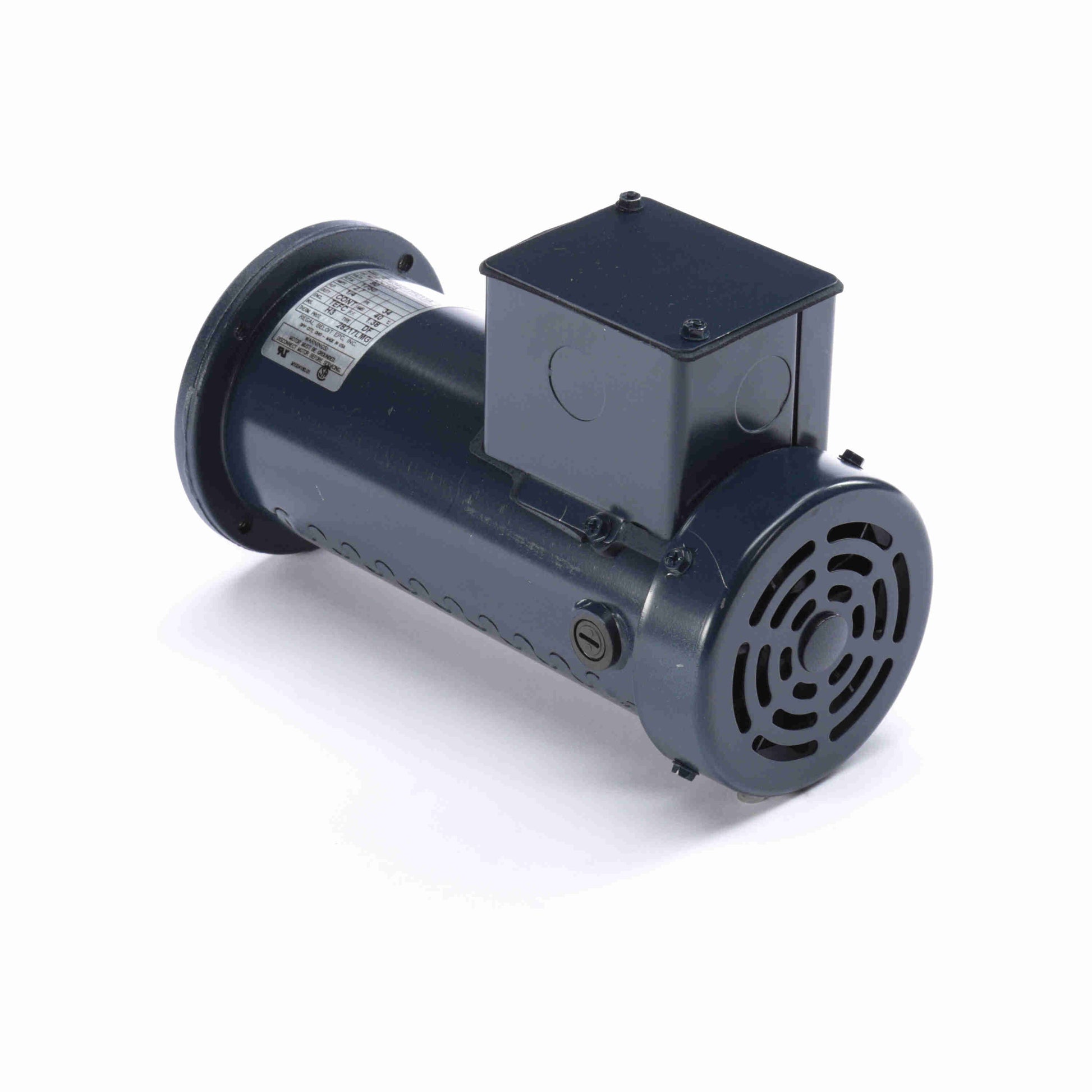

Century Electric DC107, 1/6 Hp, 1800 Rpm, 34 FR, 90 Vac, TEFC, Rigid Base, General Motor.

Century Electric DC107, 1/6 Hp, 1800 Rpm, 34 FR, 90 Vac, TEFC, Rigid Base, General Motor.

$871.00
$871.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$871.00 $827.45
Sale

DC107, 1/6 Hp, 1800 Rpm, 34 FR, 90 Vac, TEFC, Rigid Base, General Motor.

General Specifications

Output HP:1/6 Hp
Output KW:0.13 kW
Voltage:90 V
Current:1.85 A
Speed:1750 rpm
Service Factor:1
Duty:Continuous
Insulation Class:H
Frame:34
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Rigid Base
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Flat
Overall Length:9.33 in
Frame Length:6.18 in
Shaft Diameter:0.500 in
Shaft Extension:1.69 in

View full details

Attachments
