Industrial Motors

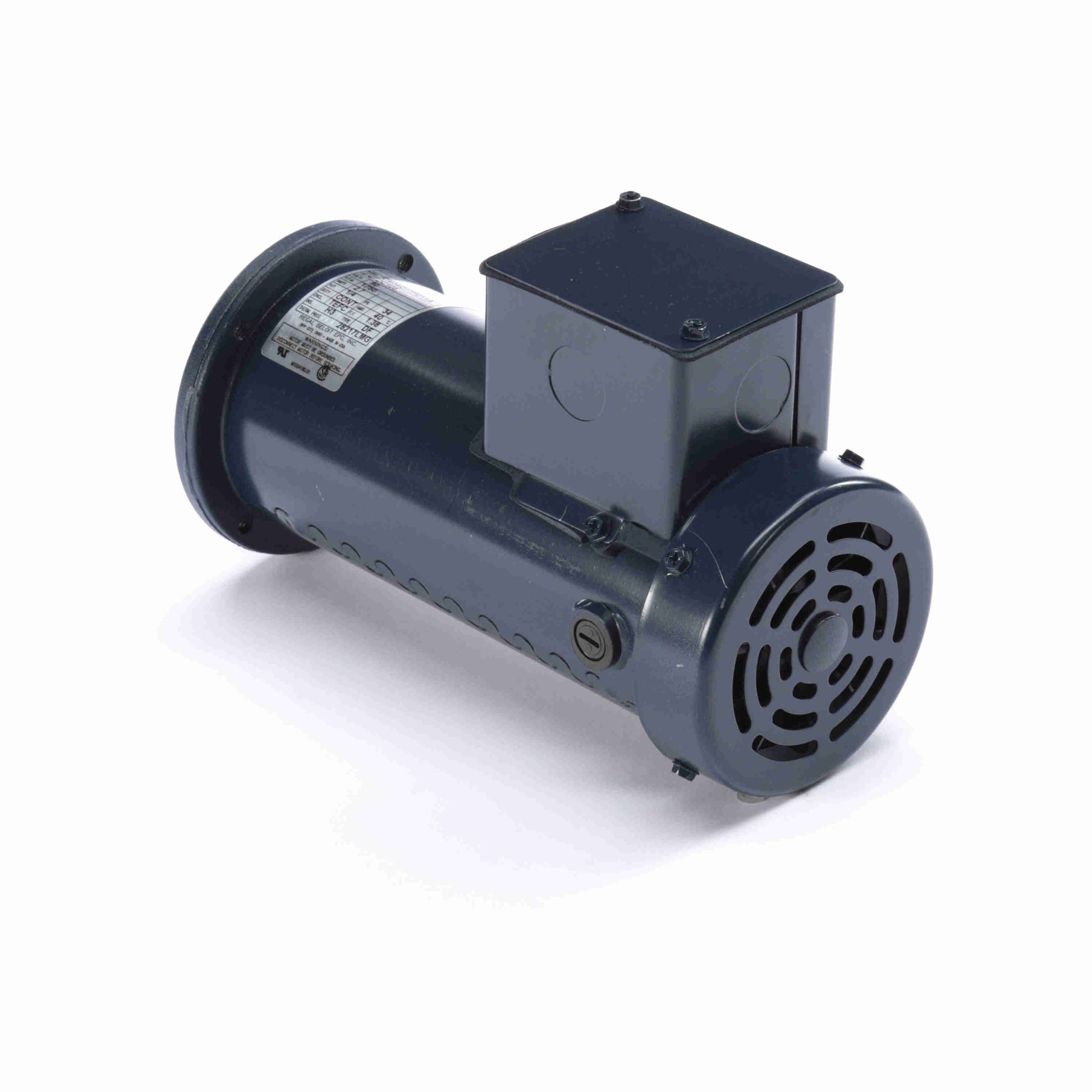

Century Electric DC110, 1/4 Hp, 1800 Rpm, 34 FR, 90 Vac, TEFC, SCR Motor.

Century Electric DC110, 1/4 Hp, 1800 Rpm, 34 FR, 90 Vac, TEFC, SCR Motor.

$980.00
$980.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$980.00 $931.00
Sale

DC110, 1/4 Hp, 1800 Rpm, 34 FR, 90 Vac, TEFC, SCR Motor.

General Specifications

Output HP:1/4 Hp
Output KW:0.19 kW
Voltage:90 V
Current:2.7 A
Speed:1750 rpm
Service Factor:1
Duty:Continuous
Insulation Class:H
Frame:34
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Round
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Keyed
Overall Length:10.65 in
Frame Length:7.18 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in

View full details

Attachments
