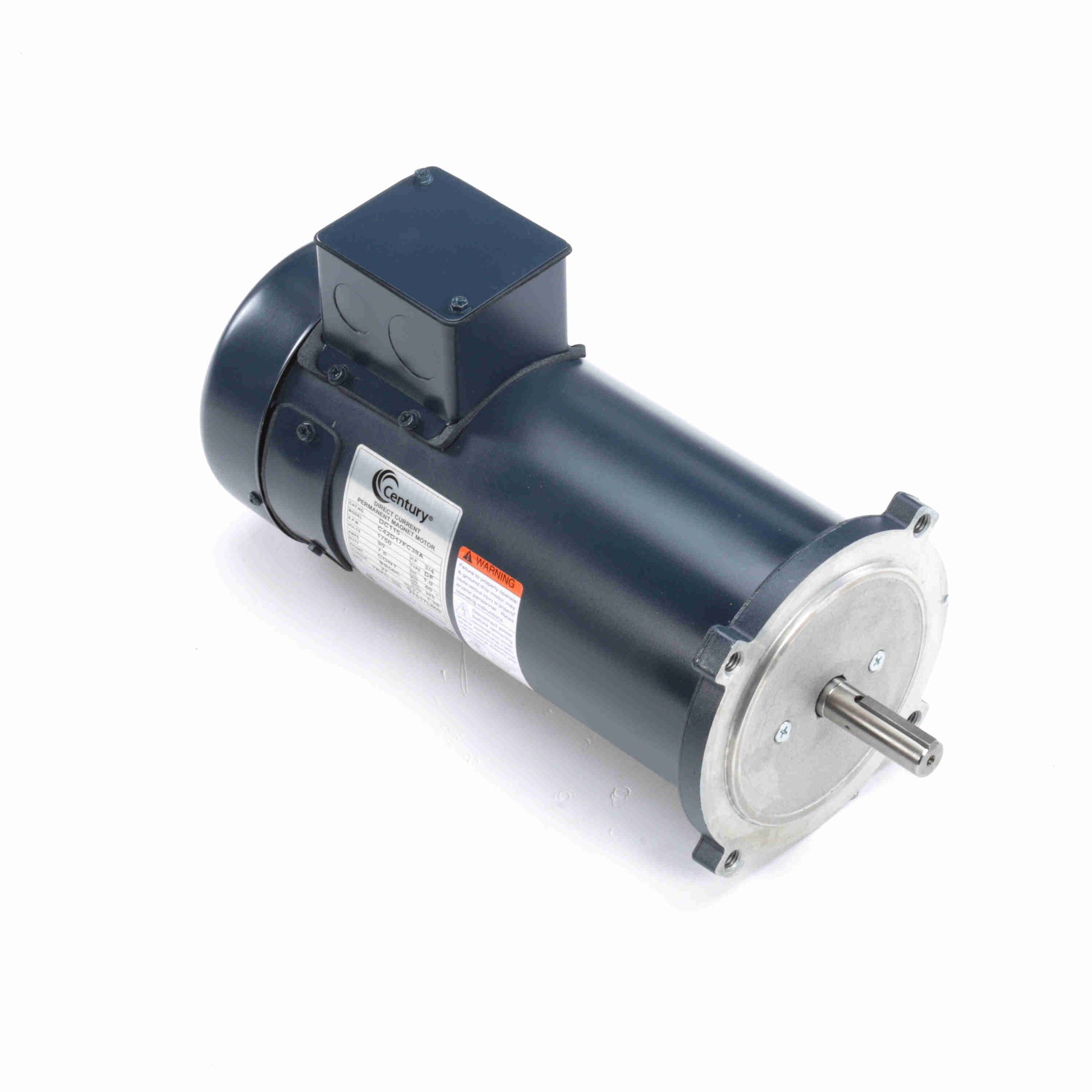

Century Electric DC126, 1/2 Hp, 2500 Rpm, S56C FR,180 Vac, TENV, SCR Motor.

Century Electric DC126, 1/2 Hp, 2500 Rpm, S56C FR,180 Vac, TENV, SCR Motor.

$1,126.00
$1,126.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,126.00 $1,069.70
Sale

DC126, 1/2 Hp, 2500 Rpm, S56C FR,180 Vac, TENV, SCR Motor.

General Specifications

Output HP:1/2 Hp
Output KW:0.37 kW
Voltage:180 V
Current:2.8 A
Speed:2500 rpm
Service Factor:1
Duty:Continuous
Insulation Class:H
Frame:SS56C
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:No
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Round
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Keyed
Overall Length:11.71 in
Frame Length:8.50 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
