Industrial Motors

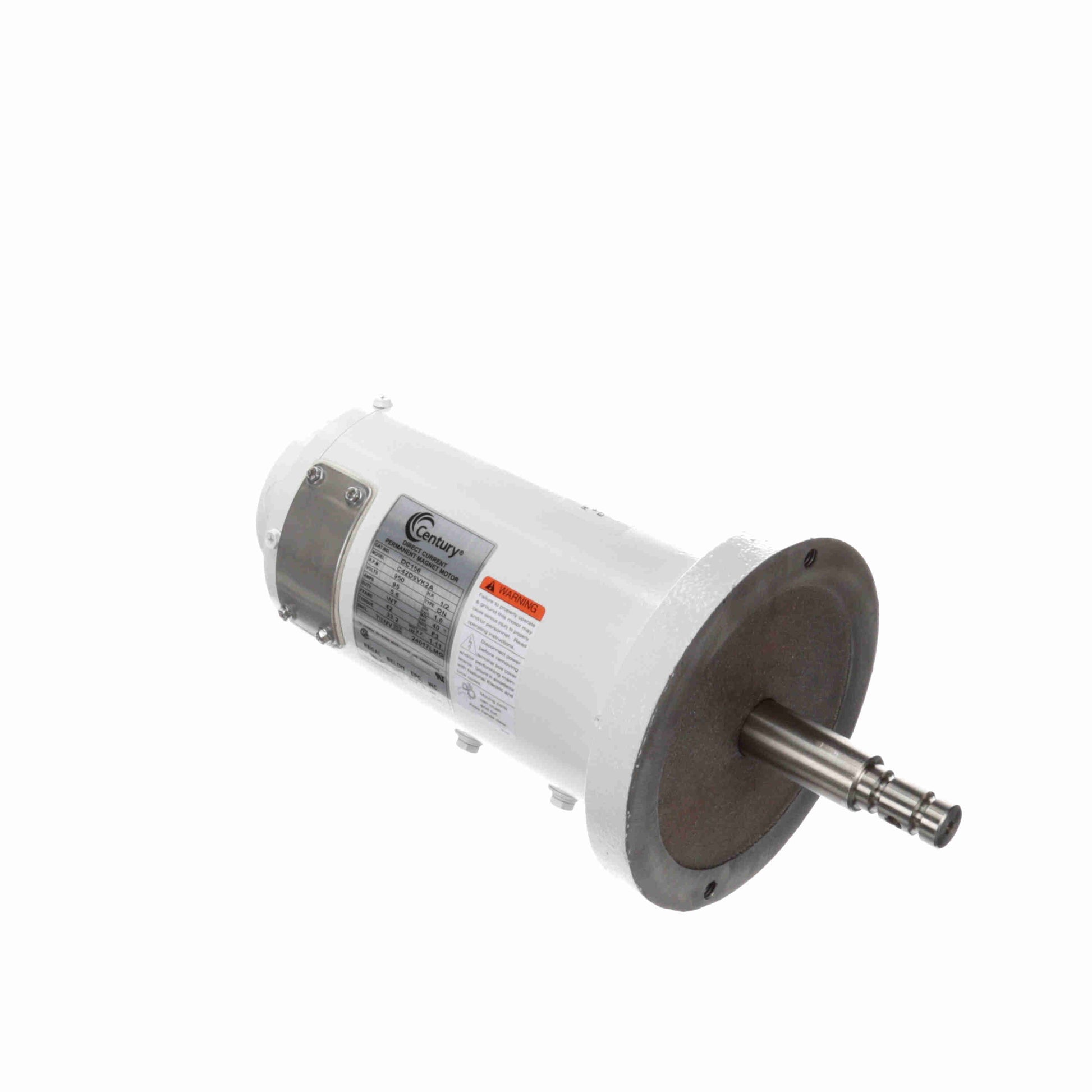

Century Electric DC146, 1/2 Hp, 950 Rpm, 42 FR, 95 Vac, TENV, SCR Motor.

Century Electric DC146, 1/2 Hp, 950 Rpm, 42 FR, 95 Vac, TENV, SCR Motor.

$1,652.00
$1,652.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$1,652.00 $1,569.40
Sale

DC146, 1/2 Hp, 950 Rpm, 42 FR, 95 Vac, TENV, SCR Motor.

General Specifications

Output HP:1/2 Hp
Output KW:0.37 kW
Voltage:95 V
Current:5.6 A
Speed:950 rpm
Service Factor:1
Duty:Intermittent
Insulation Class:F
Frame:42
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:None
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Round
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Keyed
Overall Length:14.10 in
Frame Length:8.00 in
Shaft Diameter:0.750 in
Shaft Extension:3.58 in

View full details

Attachments
