Industrial Motors

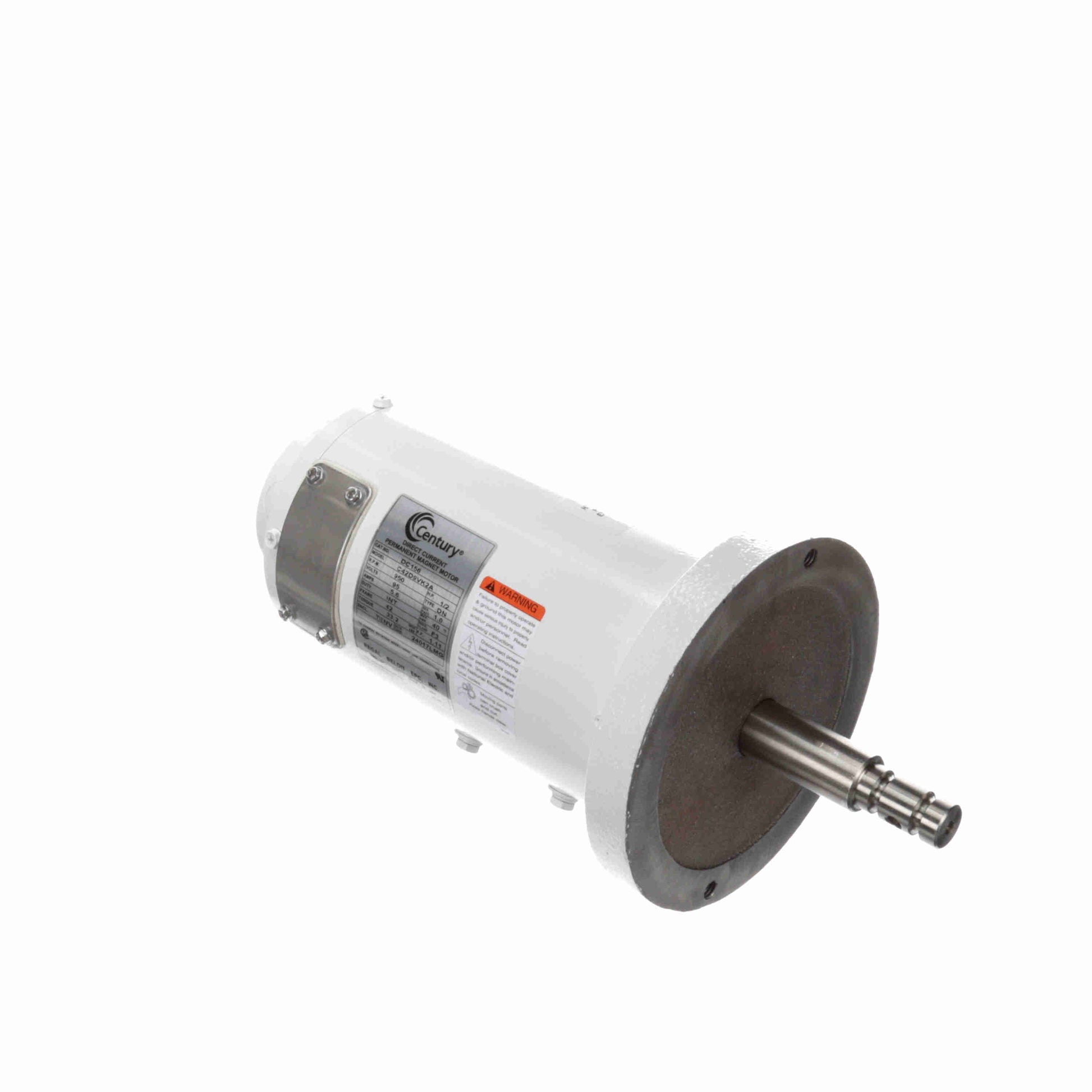

Century Electric DC157, 1 Hp, 950 Rpm, 42 FR, 95 Vac, TENV, SCR Motor.

Century Electric DC157, 1 Hp, 950 Rpm, 42 FR, 95 Vac, TENV, SCR Motor.

$2,322.00
$2,322.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$2,322.00 $2,205.90
Sale

DC157, 1 Hp, 950 Rpm, 42 FR, 95 Vac, TENV, SCR Motor.

General Specifications

Output HP:1.0 Hp
Output KW:0.75 kW
Voltage:95 V
Current:11 A
Speed:950 rpm
Service Factor:1
Duty:Intermittent
Insulation Class:F
Frame:42
Enclosure:Totally Enclosed Non Ventilated
Thermal Protection:None
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Round
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Keyed
Overall Length:15.60 in
Frame Length:9.50 in
Shaft Diameter:0.750 in
Shaft Extension:3.58 in
