Industrial Motors

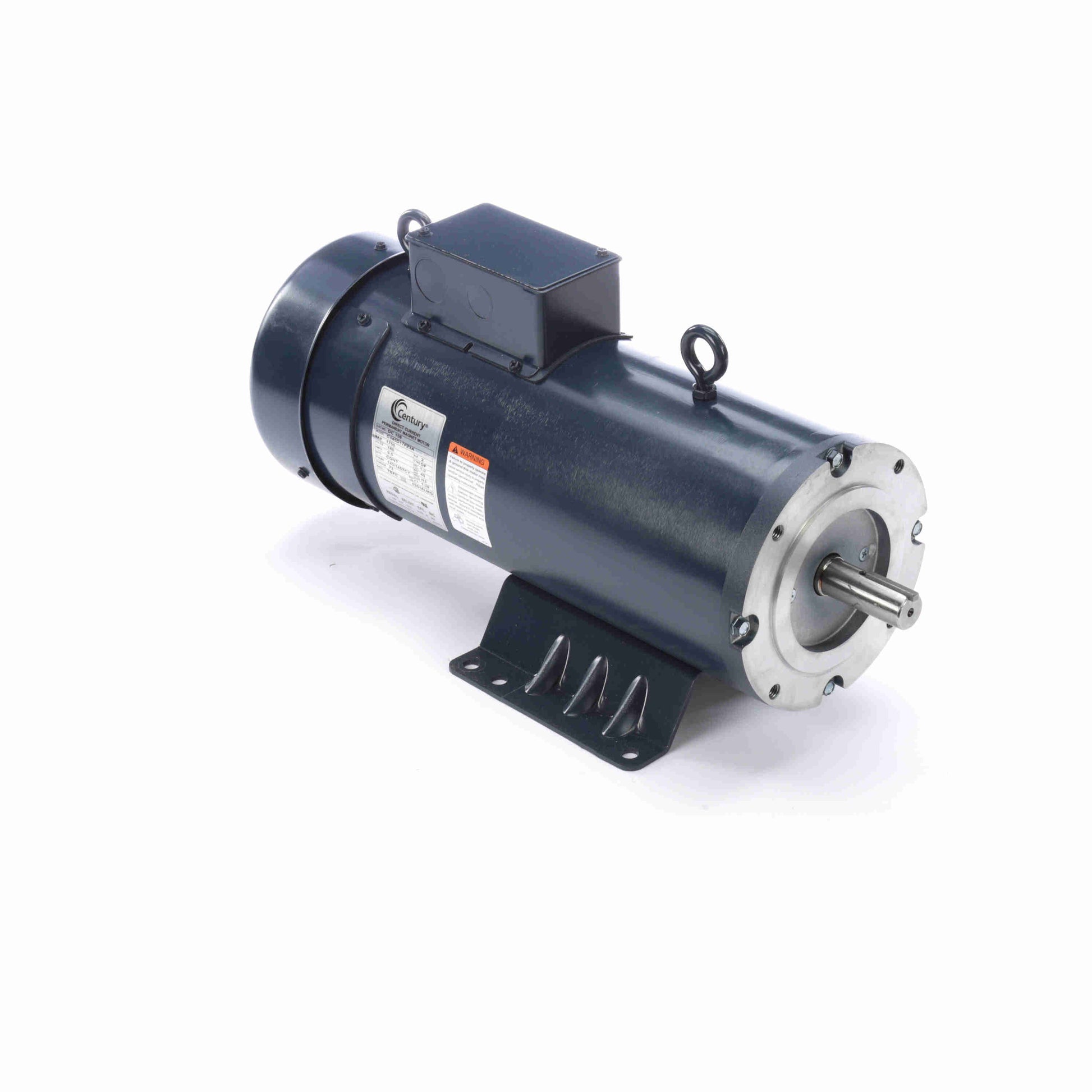

Century Electric DC158, 2 Hp, 1800 Rpm, 184TC FR, 180 Vac, TEFC, Rigid Base, SCR Motor.

Century Electric DC158, 2 Hp, 1800 Rpm, 184TC FR, 180 Vac, TEFC, Rigid Base, SCR Motor.

$4,722.00
$4,722.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$4,722.00 $4,485.90
Sale

DC158, 2 Hp, 1800 Rpm, 184TC FR, 180 Vac, TEFC, Rigid Base, SCR Motor.

General Specifications

Output HP:2 Hp
Output KW:1.5 kW
Voltage:180 V
Current:9.5 A
Speed:1750 rpm
Service Factor:1
Duty:Continuous
Insulation Class:H
Frame:184TC
+Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Rigid Base
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Keyed
Overall Length:19.34 in
Frame Length:14.63 in
Shaft Diameter:0.875 in
Shaft Extension:2.06 in
