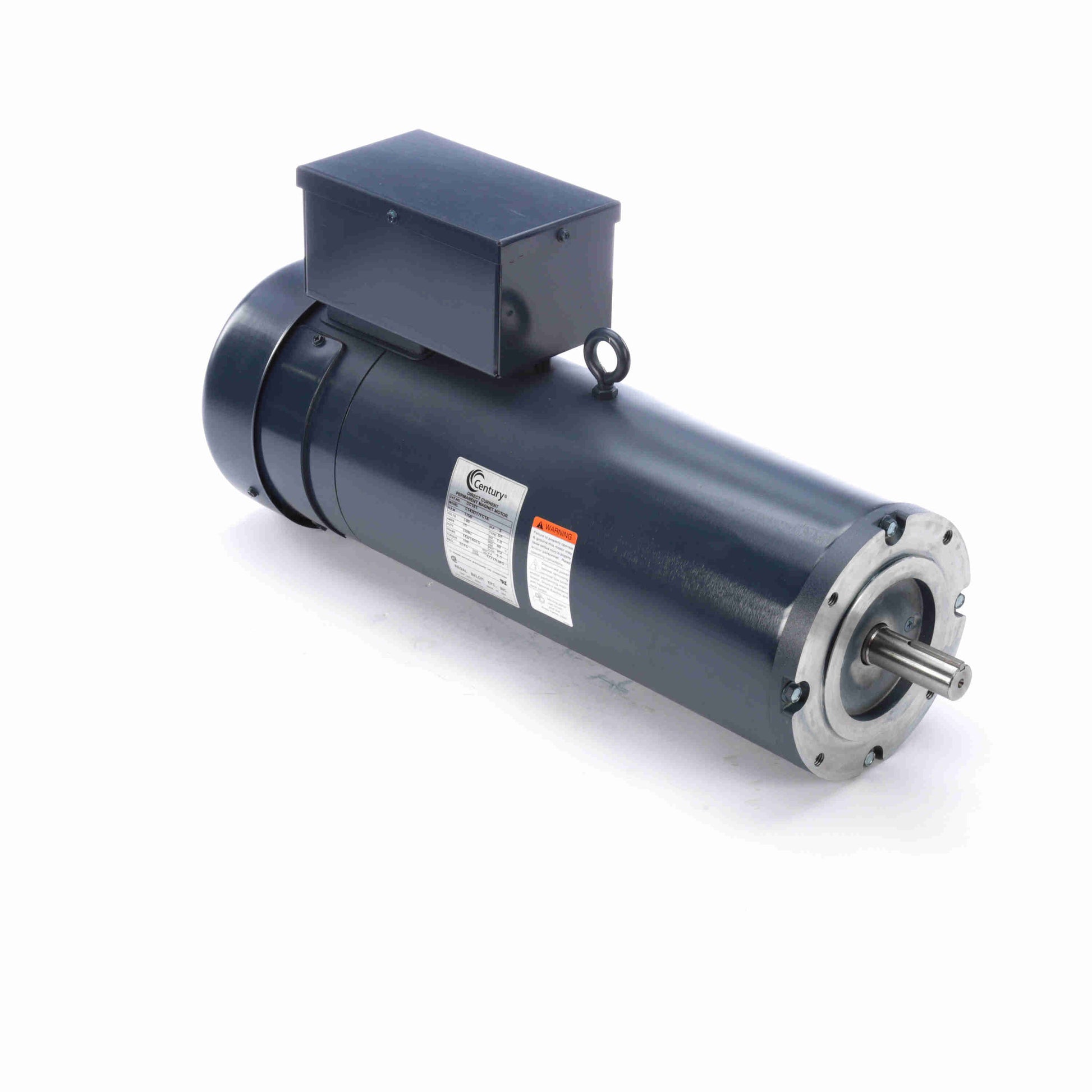

Century Electric DC161, 3 Hp, 1800 Rpm, 145TC FR, 180 Vac, Rigid Base, TEFC, SCR Motor.

Century Electric DC161, 3 Hp, 1800 Rpm, 145TC FR, 180 Vac, Rigid Base, TEFC, SCR Motor.

$5,111.00
$5,111.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$5,111.00 $4,855.45
Sale

DC161, 3 Hp, 1800 Rpm, 145TC FR, 180 Vac, Rigid Base, TEFC, SCR Motor.

General Specifications

Output HP:3 Hp
Output KW:2.2 kW
Voltage:180 V
Current:15 A
Speed:1750 rpm
Service Factor:1
Duty:Continuous
Insulation Class:H
Frame:145TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Round
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Keyed
Overall Length:22.34 in
Frame Length:14.50 in
Shaft Diameter:0.875 in
Shaft Extension:2.06 in
