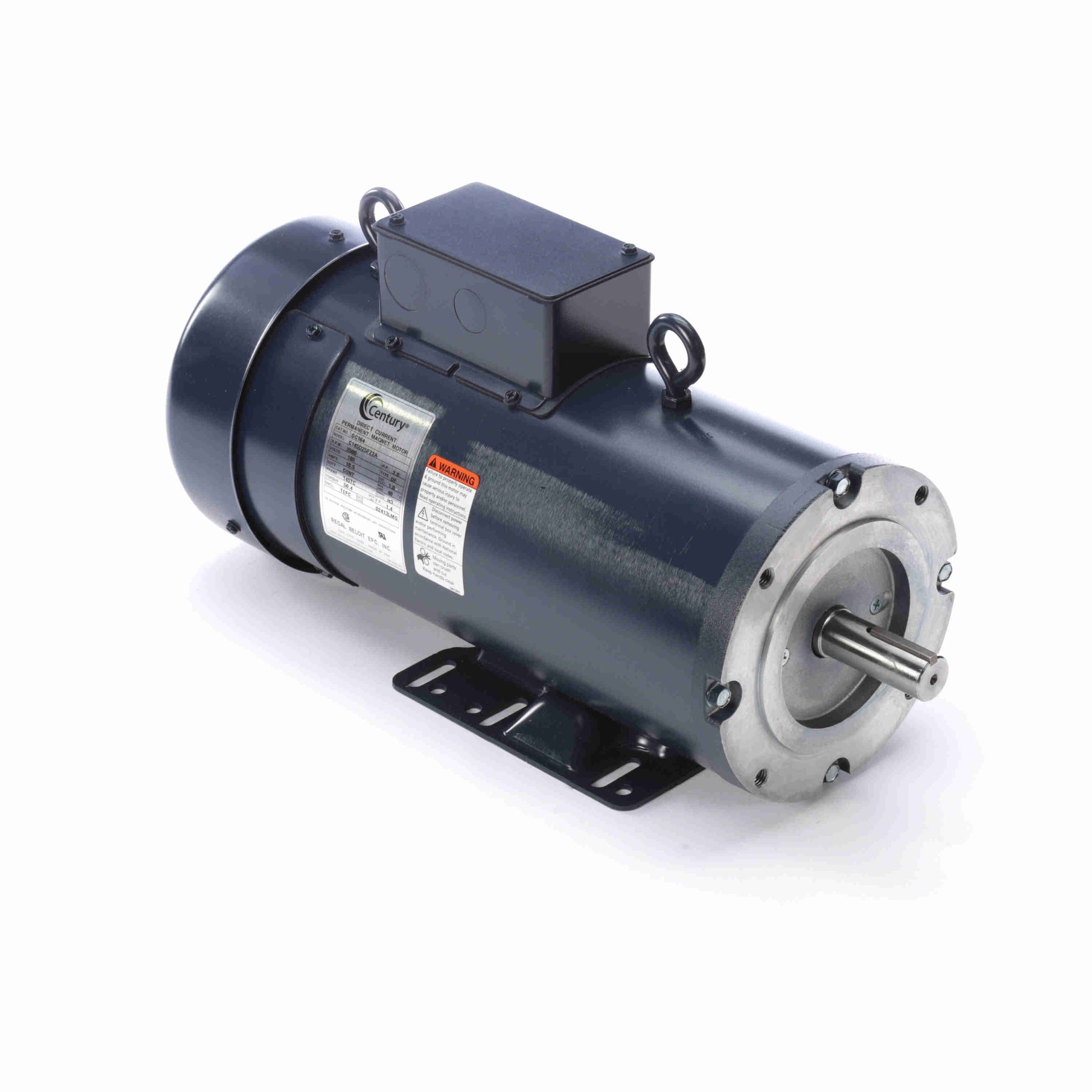

Century Electric DC163, 1 1/2 Hp, 2500 Rpm, 145TC FR, 180 Vac, Rigid Base, TEFC, SCR Motor.

Century Electric DC163, 1 1/2 Hp, 2500 Rpm, 145TC FR, 180 Vac, Rigid Base, TEFC, SCR Motor.

$3,385.00
$3,385.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.
$3,385.00 $3,215.75
Sale

DC163, 1 1/2 Hp, 2500 Rpm, 145TC FR, 180 Vac, Rigid Base, TEFC, SCR Motor.

General Specifications

Output HP:1.5 Hp
Output KW:1.1 kW
Voltage:180 V
Current:8.7 A
Speed:2500 rpm
Service Factor:1
Duty:Continuous
Insulation Class:H
Frame:145TC
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
UL:Recognized
CSA:Y
CE:N
Technical Specifications
Electrical Type:DC Permanent Magnet
Starting Method:Across The Line
Rotation:Reversible
Mounting:Rigid base
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:Keyed
Overall Length:16.34 in
Frame Length:11.63 in
Shaft Diameter:0.875 in
Shaft Extension:2.06 in
