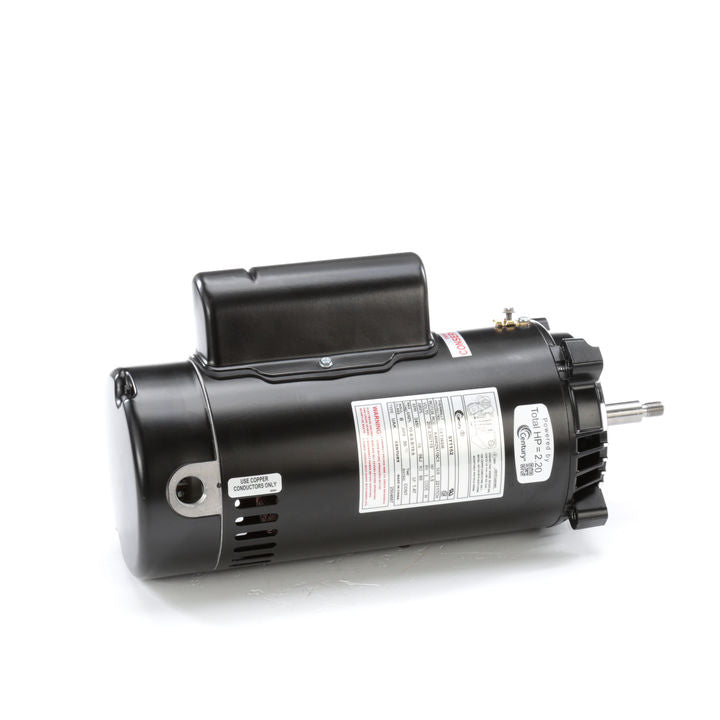

Century Electric ST1152, 1 1/2 Hp, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, Pool (In Ground), Two Compartment, Full Rated

ST1152, 1 1/2 Hp, 3600 Rpm, 56J FR, 115/230 Vac, 1 PH, Dripproof, C-Face Footless, Pool (In Ground), Two Compartment, Full Rated

General Specifications

Model : ST1152
Catalog No : ST1152
Part Description : 1.5 HP 3450 115/230
ODP 56J THD SHAFT
Category : Induction Motors
Stock : Yes
Nameplate Specifications
Output HP : 1.5 Hp
Output KW : 1.1 kW
Frequency : 60 Hz
Voltage : 208-230/115 V
Current : 10.4-9.8/19.6 A
Speed : 3450 rpm
Service Factor : 1.47
Phase : 1
Duty : Continuous
Insulation Class : B
Frame : 56J
Enclosure : Open Drip Proof Overload
Protector : Automatic
Ambient Temperature : 50 °C
UL : Recognized
CSA : Y
Technical Specifications
Electrical Type : Capacitor Start Capacitor Run
Poles : 2
Rotation : Counterclockwise Pump End Mounting : Round Motor Orientation : Horizontal
Drive End Bearing : BALL
Opp Drive End Bearing : BALL
Frame Material : Rolled Steel
Shaft Type : Threaded
Overall Length : 15.19 in
Frame Length : 9.25 in
Shaft Diameter : 0.625 in
Shaft Extension : 2.563 in
UPC : 786674031792 Weight : 32.00 LB
