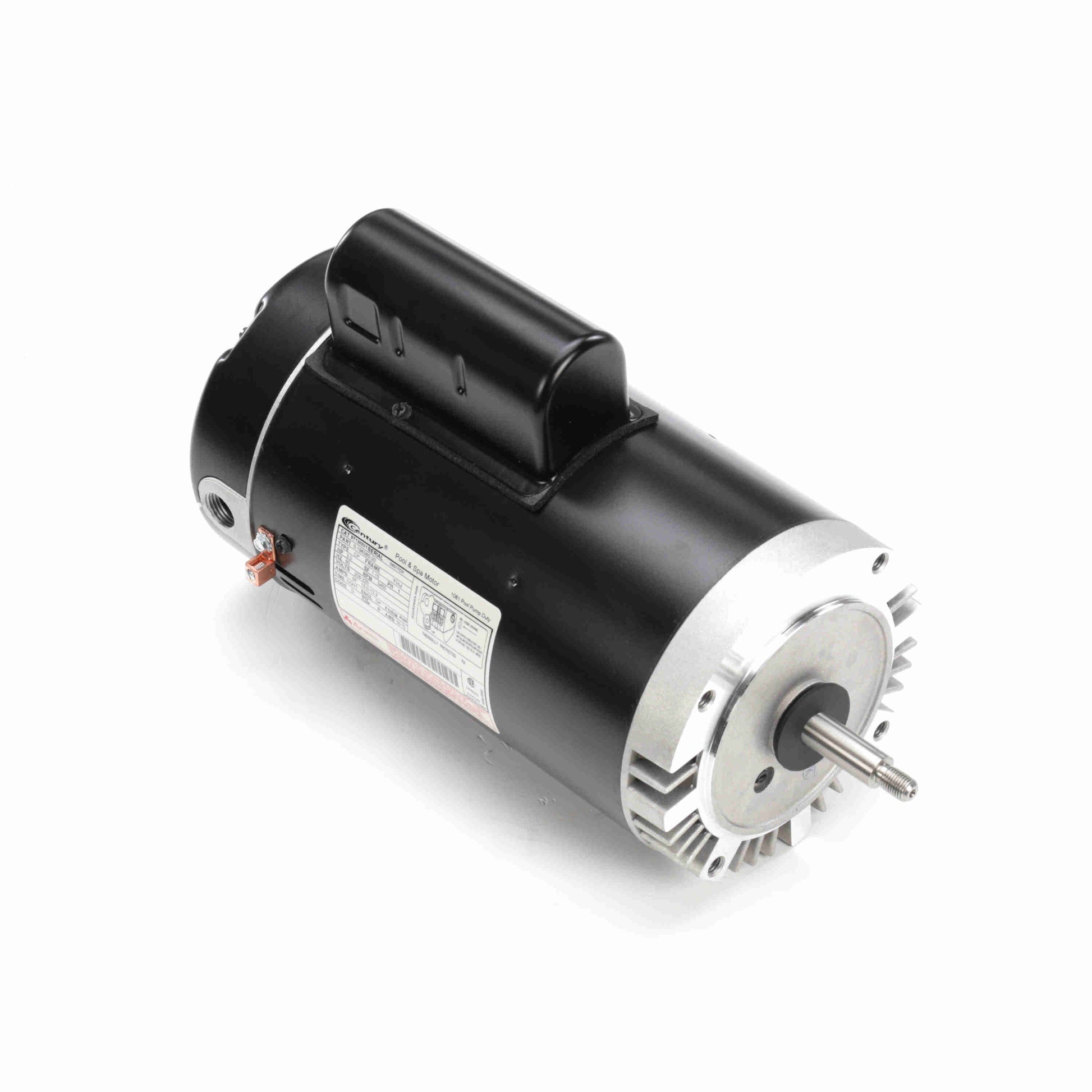

Century Electric ST1302V1, 3 Hp, 3600 Rpm, 56J FR, 208-230 Vac, 1 PH, ODP, Capacitor Start/Run, Threaded Shaft, Round Flange, Pool Pump Motor

Century Electric ST1302V1, 3 Hp, 3600 Rpm, 56J FR, 208-230 Vac, 1 PH, ODP, Capacitor Start/Run, Threaded Shaft, Round Flange, Pool Pump Motor

$545.60
$545.60
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

ST1302V1, 3 Hp, 3600 Rpm, 56J FR, 208-230 Vac, 1 PH, ODP, Capacitor Start/Run, Threaded Shaft, Round Flange, Pool Pump Motor

Engineering Data

Electrical Type: Capacitor Start, Capacitor Run, Single Or Dual Voltage
Poles:2
Rotation: Counterclockwise Pump End
Mounting: C Face
Motor Orientation: Horizontal
Drive End Bearing: Ball
Opp Drive End Bearing: Ball
Frame Material: Rolled Steel
Shaft Type: Threaded
Overall Length: 14.86 in
Frame Length: 9.25 in
Shaft Diameter: 0.625 in
Shaft Extension: 2.53 in
