Industrial Motors

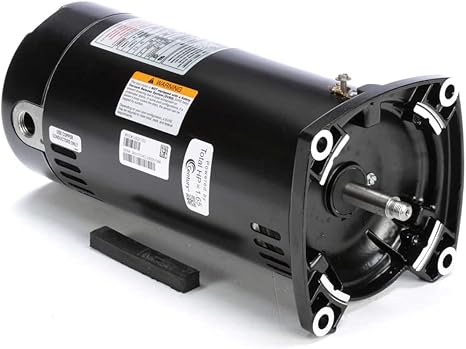

Century SQL1072R, 3/4 Hp, 3600 Rpm, 5-5/8" Diameter (48 Frame), 115 Vac, 1 PH, ODP, Two Compartment, Two Speed, High Service Factor, Square Flange, Pool (In Ground), Full Rated Motor

Century SQL1072R, 3/4 Hp, 3600 Rpm, 5-5/8" Diameter (48 Frame), 115 Vac, 1 PH, ODP, Two Compartment, Two Speed, High Service Factor, Square Flange, Pool (In Ground), Full Rated Motor

$698.00
$698.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Century SQL1072R, 3/4 Hp, 3600 Rpm, 5-5/8" Diameter (48 Frame), 115 Vac, 1 PH, ODP, Two Compartment, Two Speed, High Service Factor, Square Flange, Pool (In Ground), Full Rated Motor

Engineering Data

Stock Number
SQL1072R

Horse Power
3/4-1/8

Frequency
60

RPM
3450/1725

Voltage
115

Number of Speeds
2

Motor Type
F/C

Frame Size
48Y

Nema Suffix
Y

Mounting Type
SQ. FLANGE

Service Factory
1.65

Phase
1

Enclosure
ODP

Bearings
BALL

Ambient Temperature
50

Insulation Class
B

Rotation
CCWPE

Protector
AUTOMATIC

Duty Cycle
CONT

Agency Approvals
ULCSA
