Industrial Motors

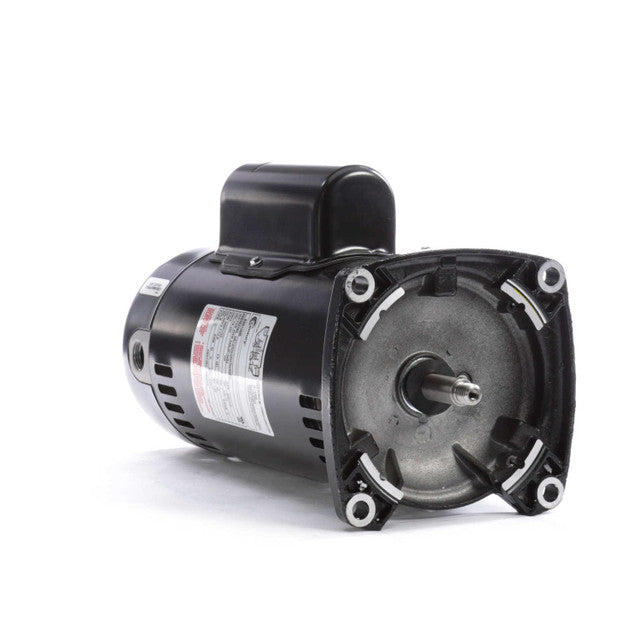

Century SQS1102R, 1 Hp, 3600 Rpm, 5-5/8" Diameter (48 Frame), 230 Vac, 1 PH, ODP, Two Compartment, Two Speed, High Service Factor, Square Flange, Pool (In Ground), Full Rated Motor

Century SQS1102R, 1 Hp, 3600 Rpm, 5-5/8" Diameter (48 Frame), 230 Vac, 1 PH, ODP, Two Compartment, Two Speed, High Service Factor, Square Flange, Pool (In Ground), Full Rated Motor

$714.00
$714.00
Add to Cart for Discount
Sale Sold out
Shipping calculated at checkout.

Century SQS1072R, 3/4 Hp, 3600 Rpm, 5-5/8" Diameter (48 Frame), 230 Vac, 1 PH, ODP, Two Compartment, Two Speed, High Service Factor, Square Flange, Pool (In Ground), Full Rated Motor

Engineering Data

Stock Number
SQS1102R

Horse Power
1.0/.17

Frequency
60

RPM
3450/1725

Voltage
230

Number of Speeds
2

Motor Type
F/C

Frame Size
48Y

Nema Suffix
Y

Mounting Type
SQUARE FLNG

Service Factory
1.65

Phase
1

Enclosure
ODP

Bearings
BALL

Ambient Temperature
50

Insulation Class
B

Rotation
CCWPE

Protector
AUTOMATIC

Duty Cycle
CONT

Agency Approvals
ULCSA


View full details

Attachments
