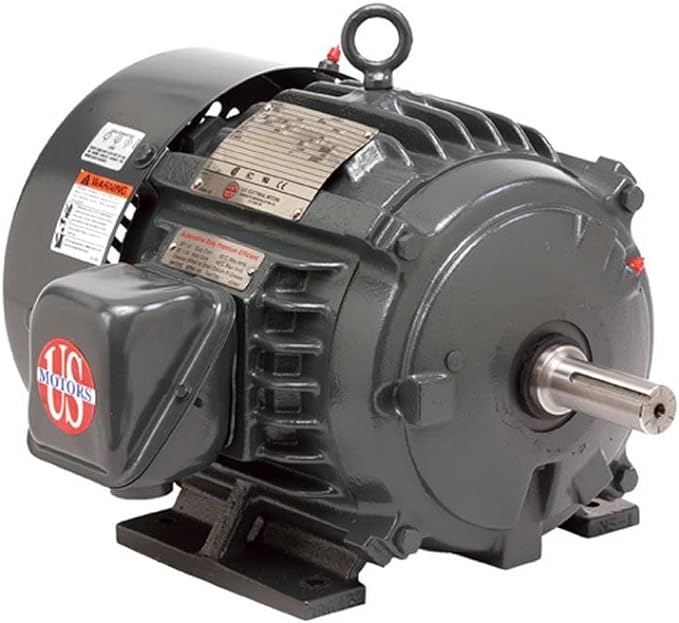

D145T1.5M4A, 1 1/2 HP, 1800 RPM, 145T FR, ODP, 208-230/460 Vac, 3 PH, Foot Mounted, General Purpose

D145T1.5M4A, 1 1/2 HP, 1800 RPM, 145T FR, ODP, 208-230/460 Vac, 3 PH, Foot Mounted, General Purpose.
GENERAL PURPOSE THREE PHASE, OPEN DRIPPROOF ROLLED STEEL CONSTRUCTION ENERGY EFFICIENT - EPACT RATED

APPLICATIONS:

General purpose use on pumps, fans, blowers, compressors, Material Handling and other general purpose applications where comtaminants are minimal.

FEATURES:
• Meets or exceeds EPACT '92 and NRCan efficiency requirements
• F1/F2 reversible
• Suitable for wye-delta start on 213T frame and above
• Feet are dual drilled for mounting flexibility
• Dual voltage ratings suitable for part wind start on lower voltage
• NEMA Design B performance
• 1.15 Service Factor @ 60 hertz; 1.0 Service Factor @ 50 hertz
• Rolled steel frame construction
• Inverter Rated (10:1 variable torque - 5:1 constant torque)
• C-Flange field conversion kits available
• Vacuum Pressure Impregnation for all windings
• Lifting provisions on 143T frame and above
• Sealed bearings thru 215T frame
• Condensation drains with plastic plugs
• Class F insulation system, class B rise at full load
• IP23 Protection
• 40° C ambient continuous duty
• CSA + C + US Certification
• Corrosion resistant epoxy paint
• ISO 9001 Certification
• Stainless steel nameplate and zinc plated hardware
