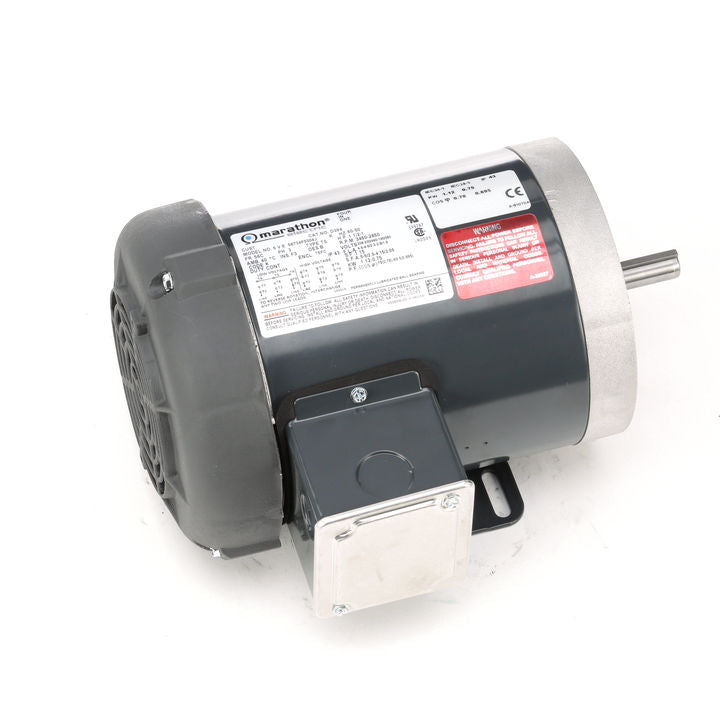

Marathon Electric D393A, 1 Hp, 3600 Rpm, 56C FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T34F9008

D393A, 1 Hp, 3600 Rpm, 56C FR, 230/460 Vac, 3 PH, TEFC, C-Face Footed, General Purpose, Standard Efficiency, 056T34F9008

Engineering Data

Output HP:1 Hp
Output KW:0.75 kW
Frequency:60 Hz
Voltage:230/460 V
Current:3.0/1.5 A
Speed:3450 rpm
Service Factor:1.15
Phase:3
Efficiency:78.5 %
Power Factor:79.1
Duty:Continuous
Insulation Class:F
Design Code:B
KVA Code:J
Frame:56C
Enclosure:Totally Enclosed Fan Cooled
Thermal Protection:No
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized
CSA:Y
CE:YIP Code:43
Technical Specifications
Electrical Type:Squirrel Cage Induction Run
Starting Method:Across The Line
Poles:2
Rotation:Reversible
Resistance Main:21.2 Ohms
Mounting:Bolt-on Base
Motor Orientation:HORIZONTAL OR UP OR DOWN
Drive End Bearing:BALL
Opp Drive End Bearing:BALL
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:11.81 in
Frame Length:6.56 in
Shaft Diameter:0.625 in
Shaft Extension:2.06 in
Assembly/Box Mounting:F1 ONLY
