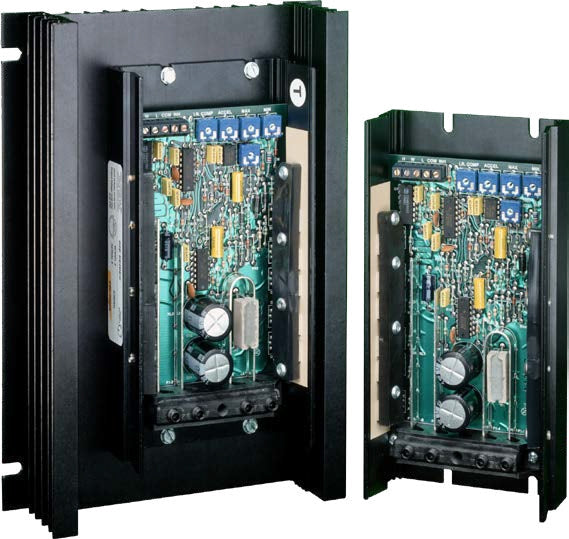

Dart Controls 65E40-12, Pulse width modulated battery control, 12VDC, 40.0 ADC continuous load current

65E40-12, Pulse width modulated battery control, 12VDC, 40.0 ADC continuous load current

DC PWM Motor Speed Control for Low Voltage Applications, Chassis, 12VDC Supply and Motor Voltage, 40ADC, Continuous Load Current

Engineering Data

Item: DC Speed Control
Enclosure: Chassis
Max. Amps: 40 A
Voltage Output: 12V DC
Speed Range: 30:1
Rotation: Single Direction
External Switches: None
DC Input Voltage: 12V DC
DC Speed Control: PWM
Operating Temp.: -10 Degrees to 45 Degrees C
Speed Regulation: +/-1% of Base Speed
Height: 7 in
Depth: 1.7 in
Follower Circuit: No
Includes: Speed Potentiometer Knob and Dial Plate
Linear Acceleration: Adjustable 0 to 10 sec
Linear Deceleration: Fixed 0.5 sec
Width: 3.7 in
Accepts Tach Feedback: No
For Use With: Low Voltage DC Motors in Portable Battery-powered Equipment for Conveying, Spraying, Pumping and Paper Sorting
HP @ Lower Volts: 1/2
Mount Type: Chassis
IR Compensation: Adjustable
Current/Torque Limit: Adjustable
Standards: RoHS
Series: Series 65
Enclosure Type: Open
Overall Height: 7 in
Higher Voltage Motor Output Power: 12 V DC
Maximum Linear Deceleration: 0.5 sec
Minimum Linear Acceleration: 0 sec
Operating Temperature: -10 Degrees to 45 Degrees C
Overall Depth: 1.7 in
Maximum Current: 40 A
Maximum Linear Acceleration: 10 sec
Lower Voltage Motor Output Power: 12 V DC
Overall Width: 3.7 in
Country of Origin (subject to change): United States
