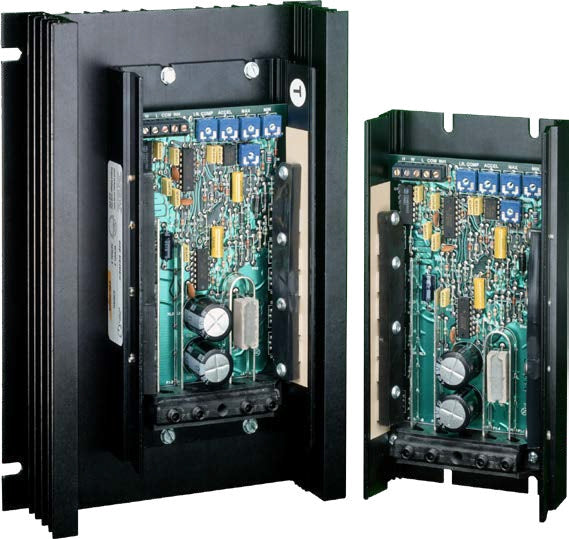

Dart Controls 65E40, Pulse width modulated battery control, 24 or 36 VDC, 40.0 ADC continuous load current

Dart Controls 65E40, Pulse width modulated battery control, 24 or 36 VDC, 40.0 ADC continuous load current

DC PWM Motor Speed Control for Low Voltage Applications, Chassis, 24 or 36 VDC Supply and Motor Voltage, 40ADC, Continuous Load Current

Engineering Data

Item: DC Speed Control
Enclosure: Chassis
Max. Amps: 40 A
Voltage Output: 24 to 36V DC
Speed Range: 30:1
Rotation: Single Direction
External Switches: None
DC Input Voltage: 24 to 36V DC
DC Speed Control: PWM
HP @ Higher Volts: 1/4 to 1/2
Speed Regulation: +/-1% of Base Speed
Depth: 1.7 in
Follower Circuit: No
Current/Torque Limit: Adjustable
Accepts Tach Feedback: No
For Use With: Low Voltage DC Motors in Portable Battery-powered Equipment for Conveying, Spraying, Pumping and Paper Sorting
IR Compensation: Adjustable
Width: 3.7 in
Includes: Speed Potentiometer Knob and Dial Plate
Mount Type: Chassis
Operating Temp.: -10 Degrees to 45 Degrees C
HP @ Lower Volts: 1/8 to 1
Linear Deceleration: Fixed 0.5 sec
Linear Acceleration: Adjustable 0 to 10 sec
Height: 7 in
Standards: RoHS
Maximum Linear Deceleration: 0.5 sec
Enclosure Type: Open
Series: Series 65
Overall Width: 3.7 in
Operating Temperature: -10 Degrees to 45 Degrees C
Lower Voltage Motor Output Power: 24 V DC
Overall Depth: 1.7 in
Higher Voltage Motor Output Power: 36 V DC
Maximum Linear Acceleration: 10 sec
Overall Height: 7 in
Maximum Current: 40 A
Minimum Linear Acceleration: 0 sec
