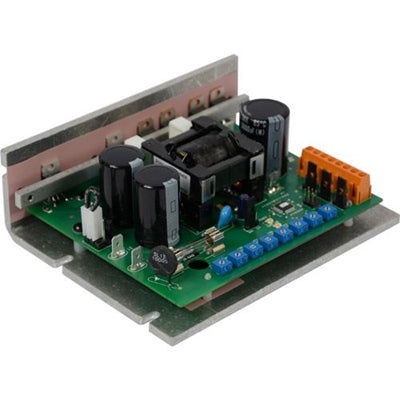

American Controls DCH401-5-LFB, Low Voltage DC Drive, 24 Vac Input, 0-24 Vac Output, 1/25-1/8 Hp, Open Chassis, PMDC Brushed Motors

DCH401-5-LFB, Low Voltage DC Drive, 24 Vac Input, 0-24 Vac Output, 1/25-1/8 Hp, Open Chassis, PMDC Brushed Motors

The DCH401-5-LFB is a modified version of our DCH401-5 for linear positioning applications. It is designed to take in a resistive feedback signal that the drive uses to compare with a commanded position signal, which the drive will then act on to move the motor forward or reverse until the two signals match. The control can be accurate to within 1/1000th of commanded position.

The DCH series combines an AC to DC switching power supply with a regenerative PWM drive, creating an all in one solution to applications requiring control of 12 or 24 VDC motors when only 115 or 230 VAC power is available. The microprocessor design allows the drive to be programmed for custom applications or routines to meet an OEMs needs. With an isolated front end, this series is compatible with a 0-5 or 0-10 VDC analog from any PLC.
