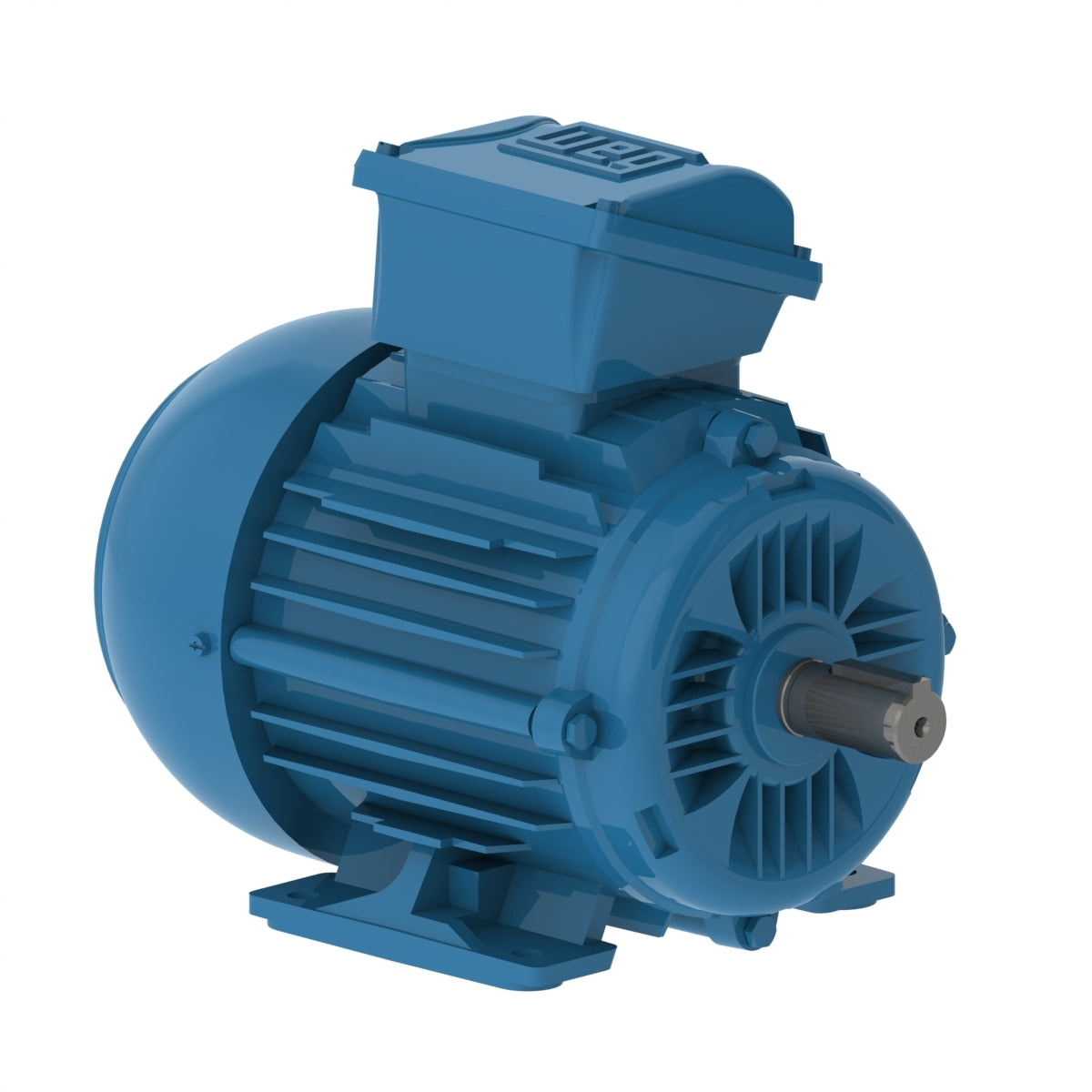

Weg Electric E0.3718EP3WAX71F3-W2, .49 HP, 71 Frame, 1500 RPM, 220-240/380-415//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE2.

E0.3718EP3WAX71F3-W2, .49 HP, 71 Frame, 1500 RPM, 220-240/380-415//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 220-240/380-415//440-460 V
Number of poles 4
Degree of Protection IP55
Synchronous speed 1500 rpm
Output rating 0.37 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 71
Output 0.37 kW
Number of Poles 4
Frequency 50 Hz
Rated speed 1385 rpm
Slip 7.67 %
Rated voltage 230/400 V
Rated current 1.77/1.02 A
L. R. Amperes 7.63/4.39 A
LRC 4.3
No load current 1.27/0.730 A
Rated torque 1.88 ft.lb
Locked rotor torque 220 %
Breakdown torque 220 %
Locked rotor time 86s (cold) 48s (hot)
Moment of inertia (J) 0.0183 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 43.0 dB(A)
