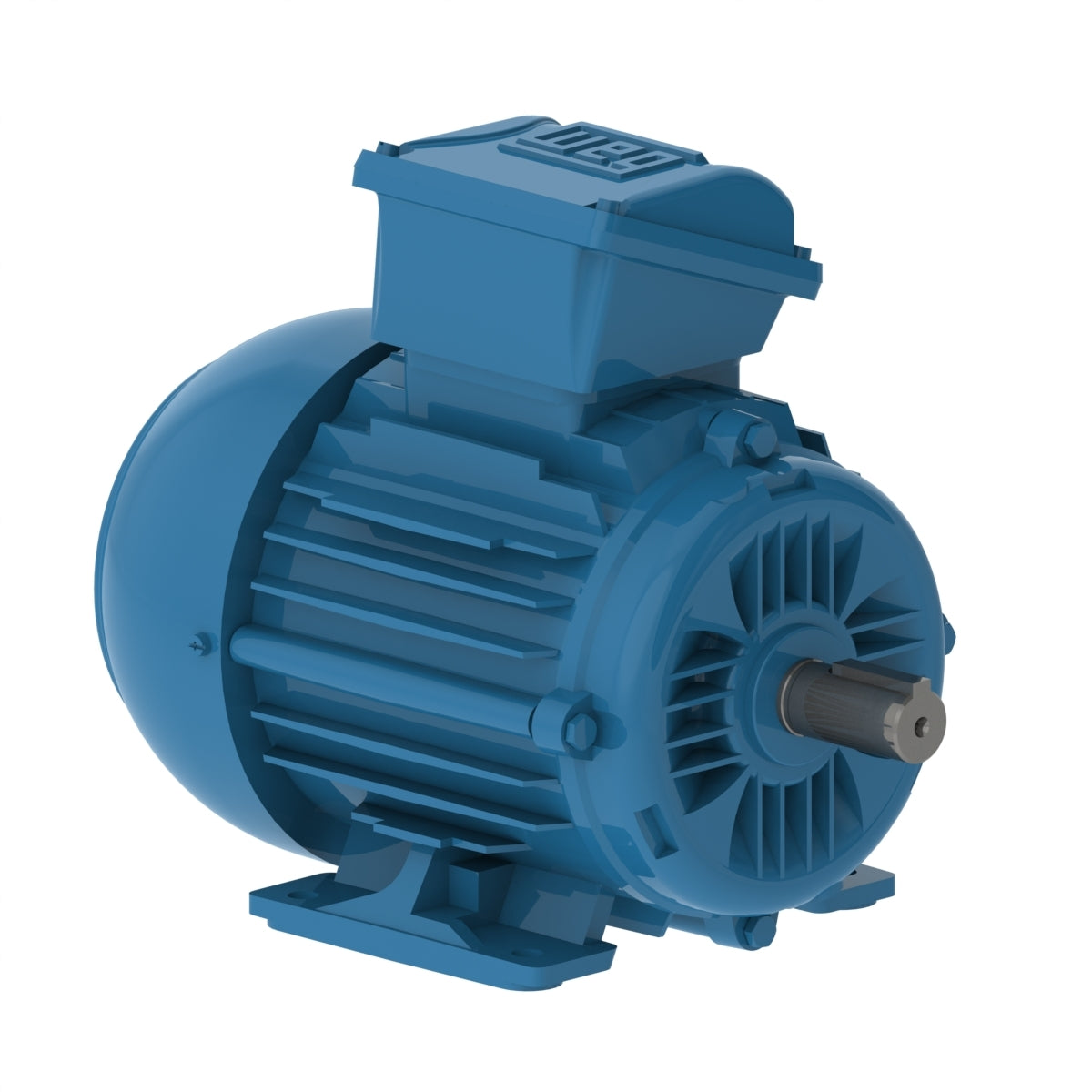

Weg Electric E0.5512EP3WAX80F3-W2, .75 Hp, 80 Frame, 1000 RPM, 220-240/380-415//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE2.

E0.5512EP3WAX80F3-W2, .75 Hp, 80 Frame, 1000 RPM, 220-240/380-415//440-460 Vac, TEFC, 3 PH, Foot-mounted, W22Xec IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 220-240/380-415//440-460 V
Number of poles 6
Degree of Protection IP55
Synchronous speed 1000 rpm
Output rating 0.55 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 80
Output 0.550 kW (0.75 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 920 rpm
Slip 8.00 %
Rated voltage 230/400 V
Rated current 2.63/1.51 A
L. R. Amperes 11.8/6.80 A
LRC 4.5
No load current 1.83/1.05 A
Rated torque 4.21 ft.lb
Locked rotor torque 229 %
Breakdown torque 220 %
Locked rotor time 37s (cold) 21s (hot)
Moment of inertia (J) 0.0721 sq.ft.lb
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP55
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 43.0 dB(A)
