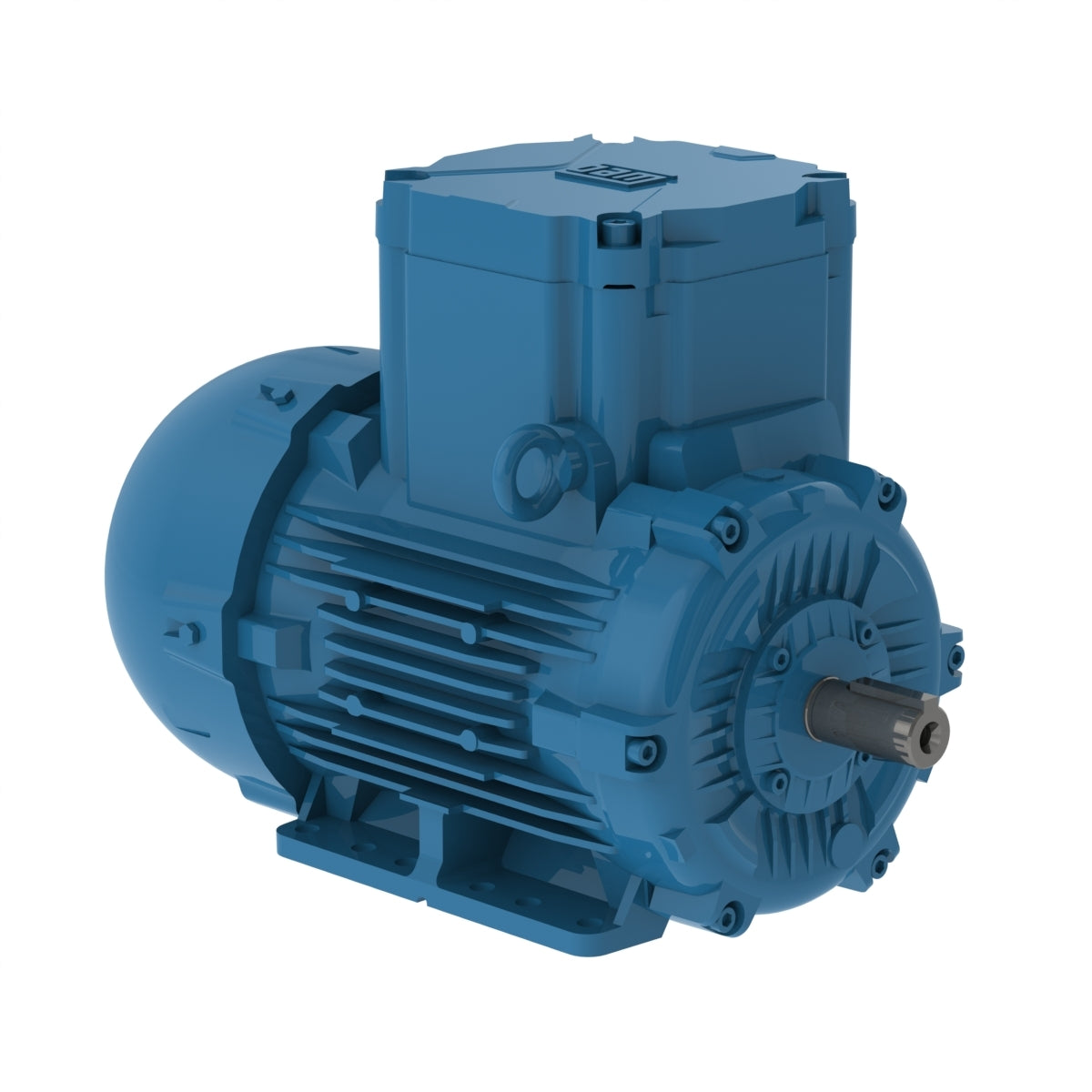

Weg Electric E0.7512XP3WAX90LF3-W, 1 Hp, 90S/L Frame, 1000 RPM, 220-240/380-415//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

E0.7512XP3WAX90LF3-W, 1 Hp, 90S/L Frame, 1000 RPM, 220-240/380-415//460 Vac, TEFC, 3 PH, Foot-mounted, W22Xdb IE2.

Engineering Data

Standard IEC 60034-1
Frequency 50 Hz
Voltage 220-240/380-415//460 V
Number of poles 6
Degree of Protection IP56
Synchronous speed 1000 rpm
Output rating 0.75 kW
Mounting Foot-mounted
Flange Without
Mounting B3T
Terminal box¹ Top
Enclosure IC411 - TEFC

Frame 90S/L
Output 0.75 kW (1 HP)
Number of Poles 6
Frequency 50 Hz
Rated speed 930 rpm
Slip 7.00 %
Rated voltage 230/400 V
Rated current 3.39/1.95 A
L. R. Amperes 15.3/8.78 A
LRC 4.5
No load current 2.09/1.20 A
Rated torque 0.785 kgfm
Locked rotor torque 200 %
Breakdown torque 210 %
Locked rotor time 41s (cold) 23s (hot)
Moment of inertia (J) 0.0052 kgm²
Design N
Insulation Class F
Service factor 1.00
Temperature rise 80 K
Duty Cycle S1
Starting Method Direct On Line
Ambient temperature -20°C to +40°C
Altitude 1000 m.a.s.l.
Degree of Protection IP56
Enclosure IC411 - TEFC
Mounting B3T
Rotation¹ Both (CW and CCW)
Noise level² 45.0 dB(A)
