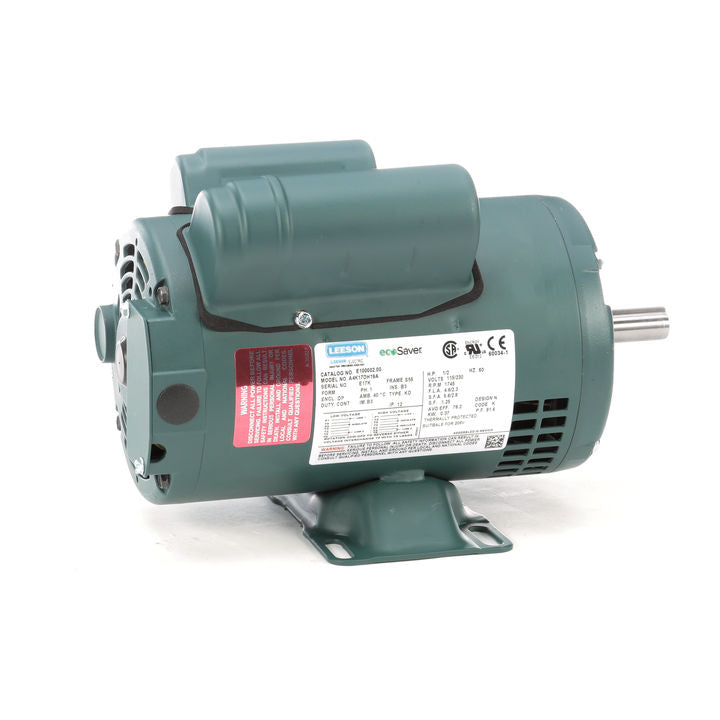

Leeson Electric E100002.00, 1/2 Hp, 1800 Rpm, 56 FR, DP, 115/208-230 Vac, 1 PH, Rigid Base, Capacitor Start, General Purpose

E100002.00, 1/2 Hp, 1800 Rpm, 56 FR, DP, 115/208-230 Vac, 1 PH, Rigid Base, Capacitor Start, General Purpose.

General Specifications

Model : A4K17DH19ACatalog No : E100002.00Part Description : ..1/2HP..1725RPM.S56.DP.115/230V.1PH.60HZ.CONT.40C.1.25SF.RIGID...GENERAL PURPOSE.AUTOMATIC.......Category : Open Drip Proof (ODP)Stock : No
Nameplate Specifications
Output HP : 0.5 HpOutput KW : 0.37 kWFrequency : 60 HzVoltage : 115/230 VCurrent : 4.6/2.3 ASpeed : 1745 rpmService Factor : 1.25 Phase : 1 Efficiency : 76.2 %Duty : CONTINUOUS Insulation Class : B Design Code : N KVA Code : K Frame : S56 Enclosure : DP Overload Protector : AUTOMATIC Ambient Temperature : 40 °CDrive End Bearing Size : 6203 Opp Drive End Bearing Size : 6203 UL : Recognized CSA : Y CE : Y IP Code : 12
Technical Specifications
Electrical Type : CAP START CAP RUN Starting Method : ACROSS THE LINE Poles : 4 Rotation : SELECTIVE CCW Mounting : RIGID Motor Orientation : HORIZONTAL Drive End Bearing : BALL Opp Drive End Bearing : BALL Frame Material : ROLLED STEEL Shaft Type : STANDARD 56 Overall Length : 11.49 inFrame Length : 7.5 inShaft Diameter : 0.63 inShaft Extension : 1.88 inAssembly/Box Mounting : F1 ONLY UPC : 691720990773 Weight : 23.00 LB
Speed Characteristics
Curvepoint Current (Amps) Current (%) Torque (ft-lbs) Torque (%) Speed (RPM) Rated Output (KW) Power Factor (%) Rated Output (Hp)
Break-Down 7.70 335.0 60.40 248.0 1,495 1.52 85.0 0.50
Pull-Up 16.20 704.0 75.40 309.0 0 0.00 0.0 0.50
Locked-Rotor 17.70 770.0 75.60 310.0 0 0.00 0.0 0.50
Full Load 2.30 100.0 24.40 100.0 1,745 0.49 91.6 0.50
Load Characteristics
% of Rated Load
Current (Amps)
Rated Output (KW)
Efficiency (%)
Power Factor (%)
Speed (RPM)
Temp. rise @ FL
Torque (ft-lb)
0 %
0.90
0.108
0.0
51.8
1,795
0.0
0.00
25 %
1.10
0.196
49.3
76.8
1,785
0.0
6.10
50 %
1.50
0.291
66.0
86.1
1,775
0.0
12.20
75 %
1.90
0.388
73.7
89.8
1,760
0.0
18.30
100 %
2.30
0.491
76.2
91.6
1,745
25.0
24.40
115 %
2.60
0.556
77.8
91.9
1,735
0.0
28.10
125 %
2.80
0.601
77.9
92.3
1,730
30.0
30.50
135 %
3.03
0.647
77.8
92.5
1,720
0.0
33.00
150 %
3.40
0.718
77.4
92.5
1,710
0.0
36.60
