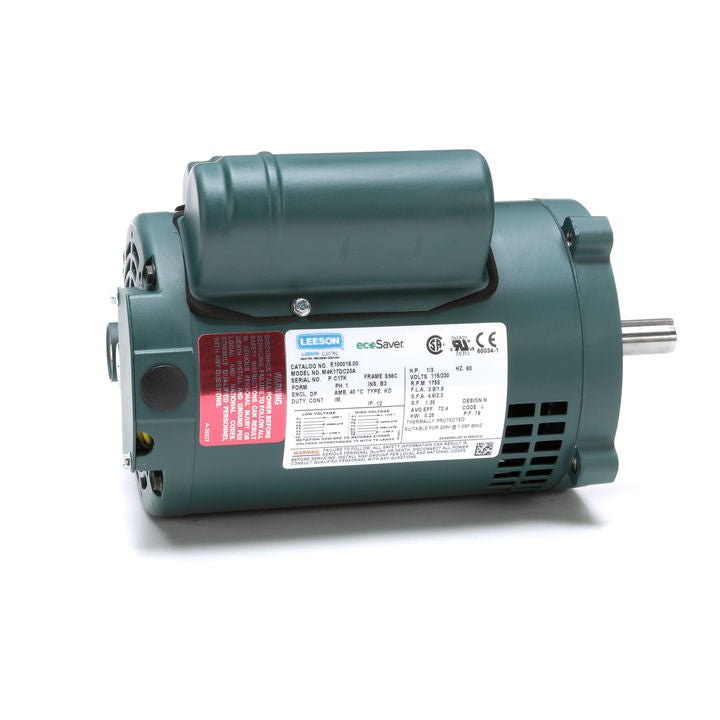

Leeson Electric E100018.00, 1/3 HP, 1800 RPM, S56C FR, DP, 115/208-230 Vac, 1 PH, C-Face Less Base, General Purpose

E100018.00, 1/3 HP, 1800 RPM, S56C FR, DP, 115/208-230 Vac, 1 PH, C-Face Less Base, General Purpose.

Engineering Data

Volts 115 Volts 230 Volts
FL Amps 3.8 FL Amps 1.9 FL Amps
SF Amps 4.6 SF Amps 2.3 SF Amps

RPM 1800 Hertz 60
HP 1/3 Duty CONTINUOUS Type KD
KW .25 SF 1.35 Phase 1
Frame S56C Design N KVA Code L
Ambient 40 Protection MANUAL Therm.Prot. CEG73GA
Insulation Class B Eff(75%) PF 79
Eff(100%) 72.4 CSA Y Bearing OPE 6203
UL P-INS, CONST, MAN PRT UL REC CE Y Bearing PE 6203
CC Number EXEMPT Inverter Type Speed Range NONE
LOad Type

Motor Wt. 16 LB Enclosure DP Lubrication POLYREX EM
Nameplate A-92005-271 Mounting ROUND Rotation SELECTIVE CCW
Shaft Diam. Cust Part No. Packaging F
Winding BE484111 Carton Label
Group 3 Iris
Paint GREEN (POWDER) Hazardous Location NONE Test Card
