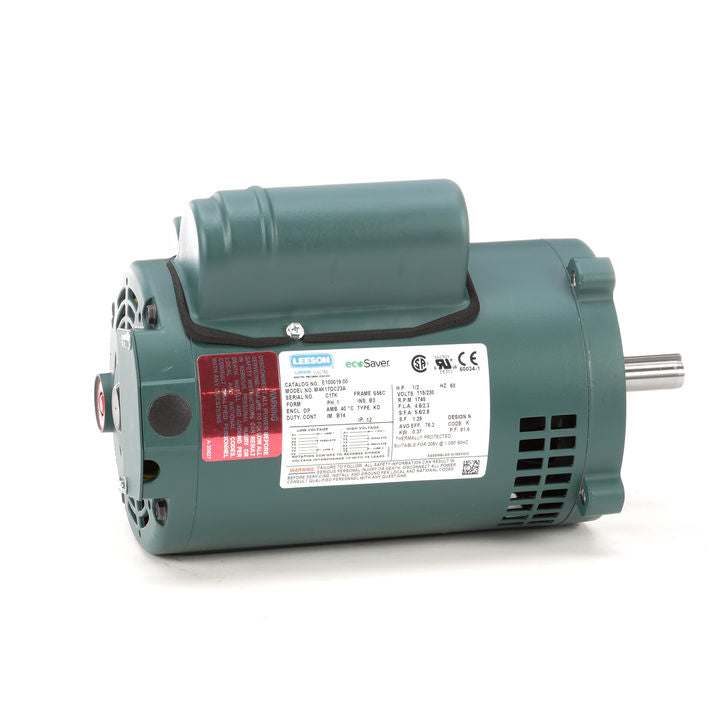

Leeson Electric E100019.00, 1/2 HP, 1800 RPM, S56C FR, DP, 115/208-230 Vac, 1 PH, C Face Less Base, General Purpose

E100019.00, 1/2 HP, 1800 RPM, S56C FR, DP, 115/208-230 Vac, 1 PH, C Face Less Base, General Purpose.

Engineering Data

Open Drip Proof (ODP)
Stock :
No
Nameplate Specifications

Output HP :
0.5 Hp
Output KW :
0.37 kW
Frequency :
60 Hz
Voltage :
115/230 V
Current :
4.6/2.3 A
Speed :
1745 rpm
Service Factor :
1.25
Phase :
1
Efficiency :
76.2 %
Duty :
CONTINUOUS
Insulation Class :
B
Design Code :
N
KVA Code :
K
Frame :
S56C
Enclosure :
DP
Overload Protector :
MANUAL
Ambient Temperature :
40 °C
Drive End Bearing Size :
6203
Opp Drive End Bearing Size :
6203
UL :
Recognized
CSA :
Y
CE :
Y
IP Code :
12
Technical Specifications

Electrical Type :
CAP START CAP RUN
Starting Method :
ACROSS THE LINE
Poles :
4
Rotation :
SELECTIVE CCW
Mounting :
ROUND
Motor Orientation :
HORIZONTAL
Drive End Bearing :
BALL
Opp Drive End Bearing :
BALL
Frame Material :
ROLLED STEEL
Shaft Type :
STANDARD 56
Overall Length :
11.49 in
Frame Length :
7.5 in
Shaft Diameter :
0.63 in
Shaft Extension :
1.88 in
Assembly/Box Mounting :
F1 ONLY
UPC :
691720991008
Weight :
24.00 LB
