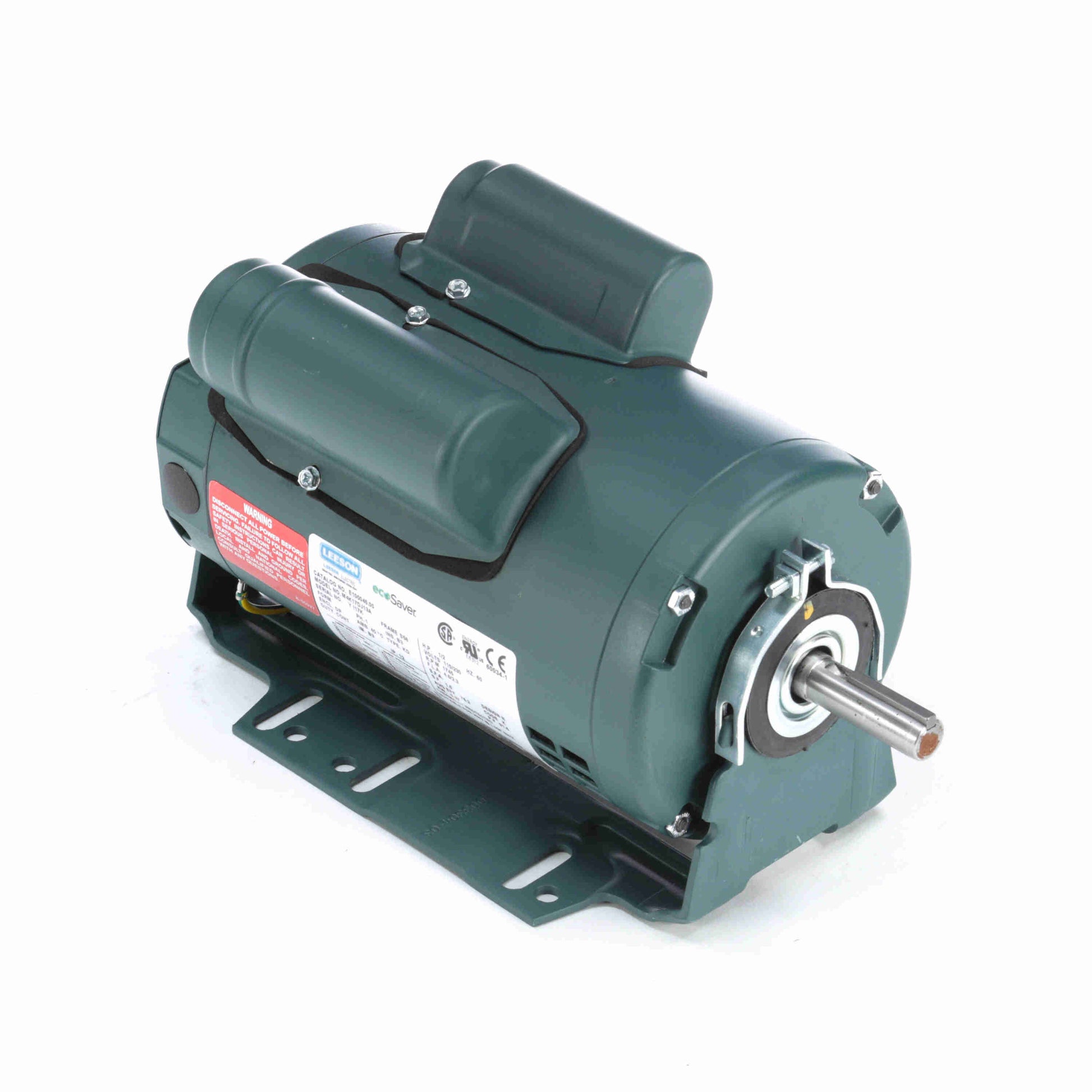

Leeson Electric E100045.00, 1/2 HP, 1800 RPM, 56 FR, DP, 115/208-230 Vac, 1 PH, Resilient Base, General Purpose

E100045.00, 1/2 HP, 1800 RPM, 56 FR, DP, 115/208-230 Vac, 1 PH, Resilient Base, General Purpose.

General Specifications

Model : M4C17DJ17KCatalog No : 100045.00Part Description : 1/2HP..1725RPM.S56.DP.115/208-230V.1PH.60HZ.CONT.40C.1.0SF.RESILIENT BASE.MANUAL.......Category : Open Drip Proof (ODP)Stock : No
Nameplate Specifications
Output HP : 0.5 HpOutput KW : 0.37 kWFrequency : 60 HzVoltage : 115/208-230 VCurrent : 8.8/4-4.4 ASpeed : 1725 rpmService Factor : 1 Phase : 1 Efficiency : 62 %Duty : CONTINUOUS Insulation Class : B Design Code : N KVA Code : K Frame : S56 Enclosure : DP Overload Protector : MANUAL Ambient Temperature : 40 °CDrive End Bearing Size : 6203 Opp Drive End Bearing Size : 6203 UL : Recognized CSA : Y CE : N IP Code : 22
Technical Specifications
Electrical Type : CAP START IND RUN Starting Method : ACROSS THE LINE Poles : 4 Rotation : SELECTIVE CCW Mounting : RESILIENT BASE Motor Orientation : HORIZONTAL Drive End Bearing : BALL Opp Drive End Bearing : BALL Frame Material : ROLLED STEEL Shaft Type : STANDARD 56 Overall Length : 10.81 inFrame Length : 6 inShaft Diameter : 0.63 inShaft Extension : 1.88 inAssembly/Box Mounting : F1 ONLY UPC : 691720004418 Weight : 24.00 LB
