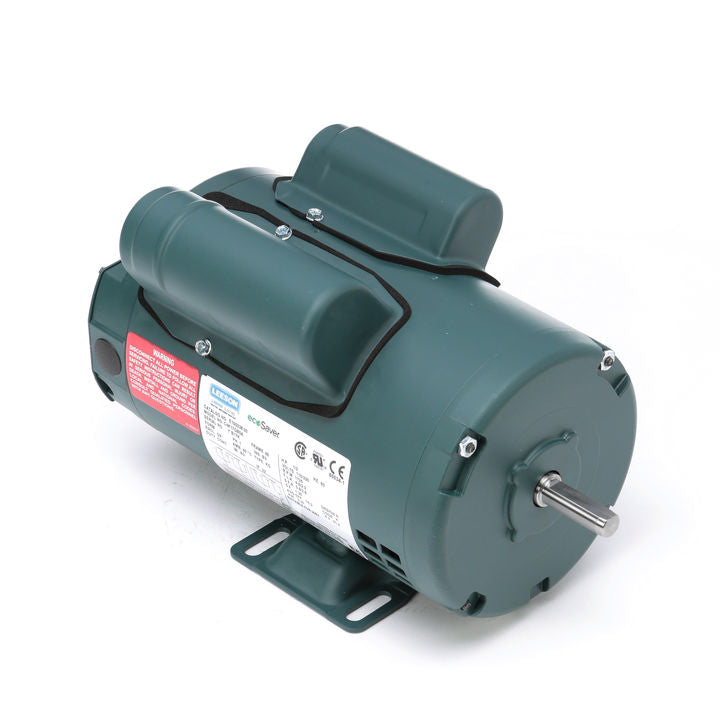

Leeson Electric E100052.00, 1/2 Hp, 3600 Rpm, 48 FR, DP, 115/208-230 Vac, 1 PH, Rigid Base, Capacitor Start, General Purpose

E100052.00, 1/2 Hp, 3600 Rpm, 48 FR, DP, 115/208-230 Vac, 1 PH, Rigid Base, Capacitor Start, General Purpose.

Engineering Data
Volts 115 Volts 208-230 Volts
F.L. Amps 6.8 F.L. Amps 3.3-3.4 F.L. Amps
S. F Amps 7.6 S. F Amps 3.9-3.8 S. F Amps

RPM 3600 Hertz 60
HP 1/2 Duty CONTINUOUS TYPE CD
KW 0.37
Frame S56 Serv. Factor 1.25 Phase 1
Max Amb 40 Design N Code L
Insul Class B Protection MANUAL Therm.Prot. CEG69GA
Eff 100% 66 Eff 75% PF 71
UL Y-(LEESON UL REC) CSA Yes Bearing OPE 6203
CC Number CE Bearing PE 6203
Load Type Inverter Type NONE Speed Range NONE

Motor Wt. 19 LB Enclosure DP Lubrication STANDARD
Nameplate A-92005-6 Mounting RIGID Rotation SELECTIVE CCW
Assembly LO100052 Shaft Dia. 5/8 IN Ext. Diag. 005003.52
Cust Part No Outline 031619-600 Ext. Diag2
Packaging B Outline Dash No Winding CE482235
Carton Label Leeson Gen Purpose GROUP : 3
Iris Paint BLUE - LEESON (ENAMEL) Test Card

Form Factor RMS Amps Const Torque Speed Range
Torque Peak
AB Code Peak@DegC
Resistance
Connection

Rework Status Rework TYPE

Hazardous Loc NONE Brake Motors
Explosion Proof Temp Op Code FORCE
Class GROUP : VDC
Class GROUP : ADC
Brake Coil OHMs @25 C

Performance
Torque UOM OZ-FT Inertia (WK²) -1 LB-FT^2
Torque 12(Full Load) 35.2(Break Down) 31.5(Pull Up) 34.6(Locked Rotor)
CURRENT (amps) 3.4(Full Load) 0(Break Down) 0(Pull Up) 20.5(Locked Rotor)
Efficiency (%) 0(Full Load) 64.9(75% Load) 57.6(50% Load) 42.7(25% Load)
PowerFactor (Full Load) 62.6(75% Load) 51.6(50% Load) 38(25% Load)

Load Curve Data @60 Hz , NONE Volts , 1/2 Horsepower
Load Amps KW2 RPM Torque EFF PF Rise By Resis Frame Rise
0.0 2.6 0.136 3566 0.0 0.0 23.0 0.0 -
0.25 2.6 0.228 3556 3.0 42.7 38.0 0.0 -
0.5 2.76 0.328 3547 6.0 57.6 51.6 0.0 -
0.75 3.03 0.437 3523 9.0 64.9 62.6 0.0 -
1.0 3.37 0.545 3499 12.0 68.3 70.5 24.1 -
1.25 3.79 0.664 3472 15.0 69.9 76.3 0.0 -
1.5 4.25 0.787 3443 18.0 69.9 80.5 0.0 -
