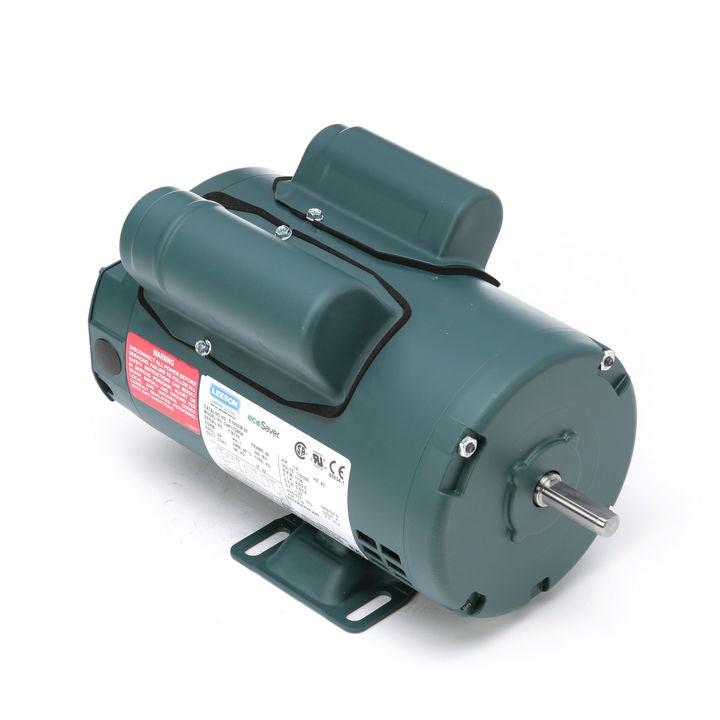

Leeson Electric E100053.00, 3/4 Hp, 3600 Rpm, S56 FR, 115/230 Vac, DP, 1 PH, General Purpose.

E100053.00, 3/4 Hp, 3600 Rpm, S56 FR, 115/230 Vac, DP, 1 PH, General Purpose.

Engineering Data

Output HP:0.75 Hp
Output KW:0.56 kW
Frequency:60 Hz
Voltage:115/230 V
Current:7.2/3.6 A
Speed:3515 rpm
Service Factor:1.25
Phase:1
Efficiency:76.2 %
Power Factor:89.2
Duty:Continuous
Insulation Class:F
Design Code:NO DESIGN CODE
KVA Code:K
Frame:S56
Enclosure:Drip Proof
Thermal Protection:Manual
Ambient Temperature:40 °C
Drive End Bearing Size:6203
Opp Drive End Bearing Size:6203
UL:Recognized ( Not Protector)
CSA:Y
CE:YIP Code:12
Technical Specifications
Electrical Type:Capacitor Start Capacitor Run
Starting Method:Across The Line
Poles:2
Rotation:Selective Counterclockwise
Resistance Main:0 Ohms
Mounting:Rigid Base
Motor Orientation:Horizontal
Drive End Bearing:Ball
Opp Drive End Bearing:Ball
Frame Material:Rolled Steel
Shaft Type:NEMA 56
Overall Length:11.49 in
Frame Length:7.50 in
Shaft Diameter:0.625 in
Shaft Extension:1.88 in
Assembly/Box Mounting:F1 ONLY
